HDPE Pipe for Natural Gas & Oil
- 1. Diameter: DN20-DN630mm (1/2 inch-24 inch).
- 2. Standard Dimension Ratio: SDR17.6, SDR17, SDR13.6, SDR11, SDR9, SDR7.4, SDR6.
- 3. Pressure Class: PN10, PN12.5, PN16, PN20, PN25, PN32
- 4. Packing: 11.8m, 11.9m, 5.8m, or 5.9m/pcs for straight, 100-200m by coils for DN20-90mm.
- 5. Delivery: 5-10 days depending on the total quantity.
- 6. Color: black with yellow stripes
- 7. Customization: Specifications and sizes can be customized according to requirements.

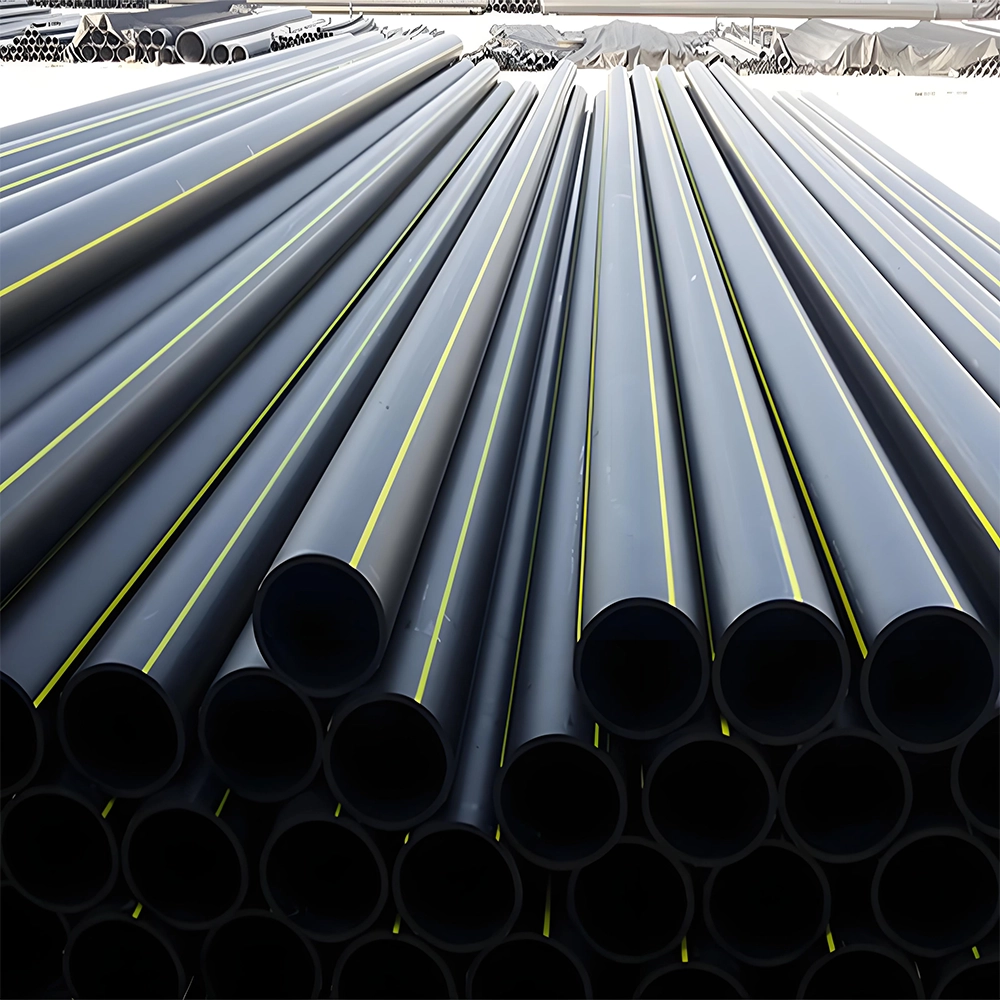

HDPE Gas Pipe Feature
- 1. HDPE pipes offer impact resistance and durability for high pressure applications.
- 2. PE 100 pipe has excellent wear resistance and scratch resistance, and can keep the surface intact even under harsh conditions.
- 3. HDPE gas pipes have strong impact resistance, effectively resist external physical damage and extend service life.
- 4. HDPE gas pipes are smooth, have low friction resistance, are easy to install and maintain.
- 5. HDPE pipes are made from non-toxic and recyclable materials with a lower carbon footprint.
HDPE Gas Pipe Application
- 1. HDPE pipe is used in medium and low pressure natural gas transmission systems in cities, industrial parks or villages. It is safe, reliable and corrosion-resistant.
- 2. HDPE gas pipe is used in the gathering and transportation network of crude oil, natural gas, mud and other media in oil fields or gas fields.
- 3. HDPE gas pipe is used in unconventional energy mining areas to transport processed gas or associated liquids.
- 4. High-density polyethylene pipe is used in unconventional energy mining areas to transport processed gas or associated liquids.
- 5. PE100 pipe is used as connecting pipe between gas pressure regulation, gas storage and gas distribution facilities.
Specification & Dimension
| Nominal Size (DN: mm) | SDR17.6 | SDR17 | SDR13.6 | SDR11 | SDR9 |
|---|---|---|---|---|---|
| 16 | 2.3 | 3 | |||
| 20 | 2.3 | 3 | |||
| 25 | 2.3 | 2.3 | 3 | ||
| 32 | 2.3 | 2.3 | 2.4 | 3 | 3.6 |
| 40 | 2.3 | 2.4 | 3 | 3.7 | 4.5 |
| 50 | 2.9 | 3 | 3.7 | 4.6 | 5.6 |
| 63 | 3.6 | 3.8 | 4.7 | 5.8 | 7.1 |
| 75 | 4.3 | 4.5 | 5.6 | 6.8 | 8.4 |
| 90 | 5.2 | 5.4 | 6.7 | 8.2 | 10.1 |
| 110 | 6.3 | 6.6 | 8.1 | 10 | 12.3 |
| 125 | 7.1 | 7.4 | 9.2 | 11.4 | 14 |
| 140 | 8 | 8.3 | 10.3 | 12.7 | 15.7 |
| 160 | 9.1 | 9.5 | 11.8 | 14.6 | 17.9 |
| 180 | 10.3 | 10.7 | 13.3 | 16.4 | 20.1 |
| 200 | 11.4 | 11.9 | 14.7 | 18.2 | 22.4 |
| 225 | 12.8 | 13.4 | 16.6 | 20.5 | 25.2 |
| 250 | 14.2 | 14.8 | 18.4 | 22.7 | 27.9 |
| 280 | 15.9 | 16.6 | 20.6 | 25.4 | 31.2 |
| 315 | 17.9 | 18.7 | 23.2 | 28.6 | 35.2 |
| 355 | 20.2 | 21.1 | 26.1 | 32.2 | 39.7 |
| 400 | 22.8 | 23.7 | 29.4 | 36.4 | 44.7 |
| 450 | 25.6 | 26.7 | 33.1 | 40.9 | 50.3 |
| 500 | 28.4 | 29.7 | 36.8 | 45.5 | 55.8 |
| 560 | 31.9 | 33.2 | 41.2 | 50.9 | 62.5 |
| 630 | 35.8 | 37.4 | 46.3 | 57.3 | 70.3 |
HDPE Gas Pipe Introduction
| Products details information | Company/Factory strength | ||
|---|---|---|---|
| Product name | High Density Polyethylene (HDPE) Pipe for Natural Gas & Oil | Production Capacity | 200*40ft containers/month |
| Brand | JINQUAN HDPE Pipe(or OEM) | Sample | Free sample available |
| Dia. ranges | DN20-630mm(1/2 inch-24 inch) | Delivery time | 5-10 days, depending on the quantity |
| Pressure Class | SDR17 to SDR6; PN10 to PN32 | Test/inspection | National standard laboratory, Pre-delivery inspection |
| Standards | ISO 4437, ASTM D3035, ASTM D2513, EN 1555, GB/T 15558, AS/NZS 4130, GOST 18599 | Certificates | ISO9001, ISO14001, ISO45001, CE... |
| Raw material | PE80, PE100, PE4710, PE3608, PE100RC... | Management | effective 8S management system |
| Color | Black with yellow stripes, or other colors you want | Warranty | 60 years with normal use |
| Packing | 5.8m or 11.8m/length, 100-200m/roll, for pipe. Cartons or bags, for fitting(customizable) | Quality | QA & QC system, Ensure traceability of each process |
| Application | Oil, Natural gas, Methane... | No. of employees | More than 200 |
| Matching products | Butt fusion hdpe Pipe fittings, Socket fusion hdpe pipe fittings, Electrofusion hdpe pipe fittings, Compression fittings, Welding machines and tools, etc. | Service | Research, Design, Sales, Solution providing, Test, Manufacture, Aftersales service |
HDPE Pipe Indicator
| Test Item | Indicator | Test Method |
|---|---|---|
| Melt Mass Flow Rate (g/10 min) | MFR change before and after processing ≤ 20% | GB/T 3682.1-2018 |
| Oxidation Induction Time | ≥ 20 min | GB/T 19466.6-2009 |
| Longitudinal Retraction Rate | ≤ 3% | GB/T 6671-2001 |
| Carbon Black Content | 2.0% ～ 2.5% | GB/T 13021-1991 |
| Carbon Black Dispersion | ≤ Grade 3 | GB/T 18251-2000 |
| Pigment Dispersion | — | — |
| Ash Content | ≤ 0.1% | GB/T 9345.1-2008 |
| Elongation At Break | ≥ 350% | GB/T 8004.3-2003 |
| Resistance to Slow Crack Growth en ≤ 5 mm (Cone Test) | < 10 mm / 24h | GB/T 19279-2003 |
| Resistance to Slow Crack Growth en ＞ 5 mm (Incision Test) | No damage, no leakage | GB/T 18476-2001 |
| Hydrostatic Pressure Strength 20℃, 100h | No damage, no leakage | GB/T 6111-2003 |
| Hydrostatic Pressure Strength 80℃, 165h | No damage, no leakage | GB/T 6111-2003 |
| Hydrostatic Pressure Strength 280℃, 1000h | No damage, no leakage | GB/T 6111-2003 |
| Note: The above indicators refer to PE pipe material quality control standards. |
Quality Ensurance
Quality Inspection Process
- Environmentally friendly raw materials are recyclable
- Material chemical composition analysis and physical property test
- Each process must be inspected and qualified before continuing
- Thickness and weight test of each product
- Each pipe is not put into storage until after final inspection.
Certificate Showcase
HDPE Pipe Advantages
1. Versatile Applications
Jinquan PE pipes are widely used across multiple sectors, including water supply, gas distribution, sewage systems, irrigation, and industrial piping.
2. Long Service Life & High Flow Efficiency
Designed for longevity, PE HDPE pipes provide minimal friction loss and high flow efficiency, with a service life of 50–60 years or more under normal conditions.
3. Easy to Install & Transport
Lightweight and flexible, Jinquan PE HDPE pipes are easy to handle and install, reducing overall labor and transportation costs while accelerating project timelines.
4. Top-Notch Strength & Toughness
Engineered for resilience, these pipes withstand high pressure and tough environmental conditions, ensuring stable performance in demanding applications.
5. Minimal Maintenance
Resistant to rust, corrosion, scaling, and chemical erosion, PE HDPE pipes require very little maintenance, leading to long-term operational savings.
6. Exceptional Flexibility
With a bending radius up to 30 times smaller than traditional pipes, PE HDPE pipes can adapt to varied terrain and tight spaces without cracking or compromising integrity.
7. Competitive Pricing
Jinquan offers cost-effective PE HDPE pipe solutions, tailored to your specific project requirements without compromising quality.
