HDPE Fabricated Fittings

HDPE fabricated fittings are custom pipe components made from high-density polyethylene (HDPE) pipe. These fabricated fittings are designed to meet specific project needs that cannot be met by standard molded fittings. This is especially true when custom sizes, large diameters, or complex configurations are required. Fabricated HDPE fittings are made by cutting, bending, and welding HDPE pipe and sheet, allowing for greater flexibility in design and application.

Common HDPE fabricated fittings types include prefabricated tee, elbows, cross, reducer, flange, and Y-fittings. They can be designed for both pressure and non-pressure applications. Jinquan can be customized according to the specific requirements of the project in terms of size, angle and shape, meeting more flexible construction of PE/HDPE pipeline projects.

HDPE Fabricated Fittings-Elbows

HDPE 45 Degree Wye Fitting

HDPE 45 Degree Plus Wye Fitting

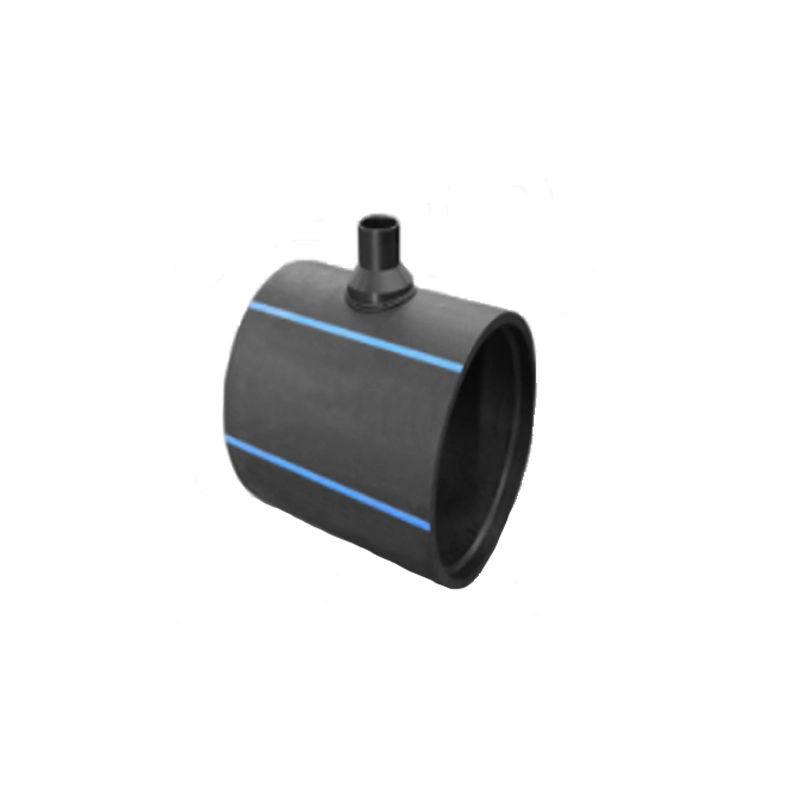

Branching Tee

Cross Reducer

Cross Tee

Tee

Reducer Long Version

Reducer Tee

Stub End

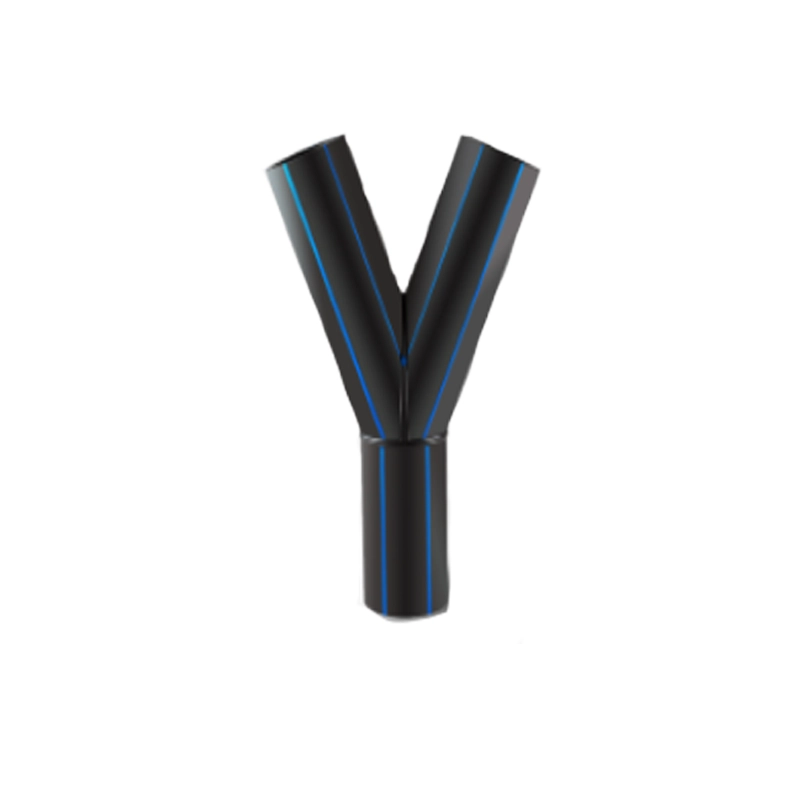

Fabricated Wye Fitting

Flange

End Cap

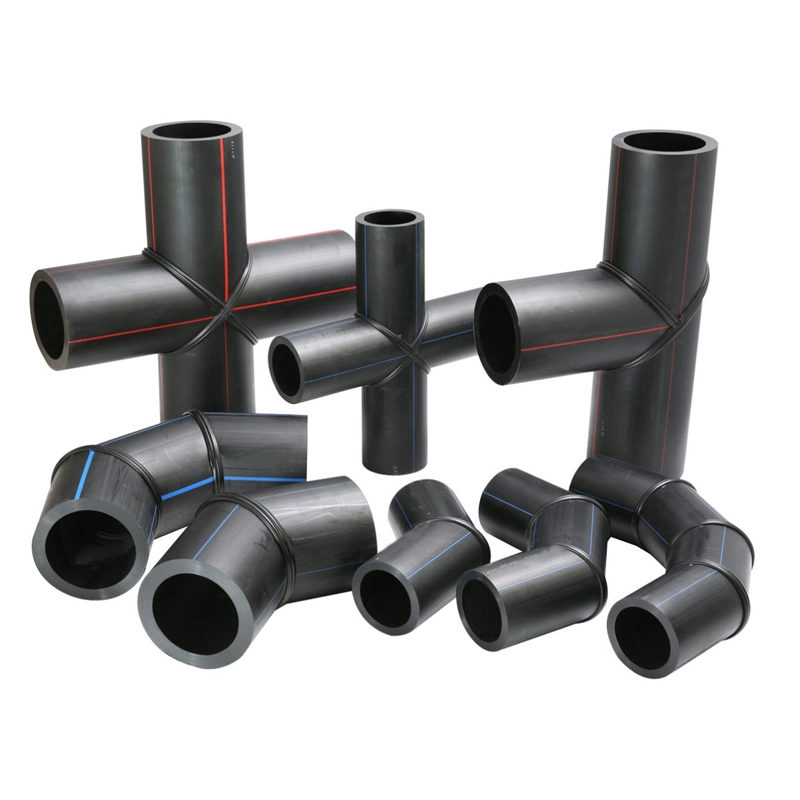

Fabricated HDPE Fittings Feature

1. HDPE fabricated fittings have excellent impact resistance and durability, long service life, and an expected service life of up to 60 years.
2. HDPE fabricated pipe fittings are made of high-density polyethylene and have excellent resistance to impact, abrasion and environmental pressure.
3. Unlike metal fittings, HDPE will not corrode, rust or degrade in harsh chemical or salt environments.
4. Fabricated HDPE pipe fittings can be manufactured to meet specific project requirements, including non-standard angles, branches or transitions.
5. The smooth inner surface of Fabricated HDPE fittings reduces friction and increases flow efficiency, minimizing pressure loss.
6. HDPE Fabricated fittings are highly resistant to UV radiation and extreme weather conditions.

HDPE Fabricated Fittings Application

1. HDPE Fabricated fittings have excellent hygienic and corrosion resistance properties and are used to transport drinking water in urban and rural water supply networks. And also used in culverts, bridge pipes and other civil engineering applications.
2. HDPE Fabricated fittings are ideal for wastewater piping, stormwater management, marine and gravity drainage systems due to their excellent chemical resistance and durability.
3. Fabricated HDPE fittings are widely used in agricultural fields, greenhouses and landscaping to reliably supply water at different pressures.
4. HDPE Fabricated fittings are ideal for transporting chemicals, acids and industrial wastewater in manufacturing and processing facilities.
5. Fabricated HDPE fittings are suitable for mining and slurry transport due to their wear resistance and can handle abrasive materials such as mud, tailings and mineral-rich fluids.

Specification & Dimension

Fittings Name	Material	Size	Color
Elbows	HDPE	Metric & Custom	Black
HDPE 45 Degree Wye Fitting	HDPE	Metric & Custom	Black
45 Degree Plus Wye Fitting	HDPE	Metric & Custom	Black
Branching Tee	HDPE	Metric & Custom	Black
Cross Reducer	HDPE	Metric & Custom	Black
Cross Tee	HDPE	Metric & Custom	Black
Tee	HDPE	Metric & Custom	Black
Reducer Long Version	HDPE	Metric & Custom	Black
Reducer Tee	HDPE	Metric & Custom	Black
Stub End	HDPE	Metric & Custom	Black
Fabricated Wye Fitting	HDPE	Metric & Custom	Black
Flange	HDPE	Metric & Custom	Black
End Cap	HDPE	Metric & Custom	Black

HDPE Fabricated Fittings Advantages

1. Customization Flexibility

JINQUAN supports fabricated accessories that can be customized to unique project requirements, including non-standard angles, diameters and configurations.

2. Long Service Life & High Flow Efficiency

Designed for longevity, PE/HDPE fittings provide minimal friction loss and high flow efficiency, with a service life of 50–60 years or more under normal conditions.

3. Easy to Install & Strong Connections

Lightweight and flexible, JINQUAN fabricated HDPE fittings are easy to handle and install, reducing overall labor and transportation costs while accelerating project timelines. Fabricated pipe fittings offer excellent joint strength and structural integrity when welded.

4. Corrosion and Chemical Resistance

Fabricated HDPE pipe fittings resist corrosion, scale build-up, and most industrial chemicals—ideal for aggressive or corrosive environments.

5. UV and Weather Resistance

Suitable for outdoor applications, as HDPE maintains performance even under prolonged exposure to sunlight and extreme weather.

7. Competitive Pricing

JINQUAN offers cost-effective HDPE fabricated fittings, tailored to your specific project requirements without compromising quality.
