Butt Fusion HDPE Pipe Fittings

Butt fusion HDPE pipe fittings are used to permanently connect HDPE pipe and fittings of the same diameter and wall thickness through a butt fusion process. During the hot-melt process, the two ends of the PE/HDPE pipe are heated and then pressed together under controlled pressure to form a seamless, uniform joint.

Common butt fusion HDPE pipe fittings include reducer, stub end long neck flange, reducing cross tee, equal tee, elbow, and other HDPE pipe fittings, which are used in large-scale applications such as water supply, natural gas pipelines, mining, industrial fluid transportation, and wastewater systems.

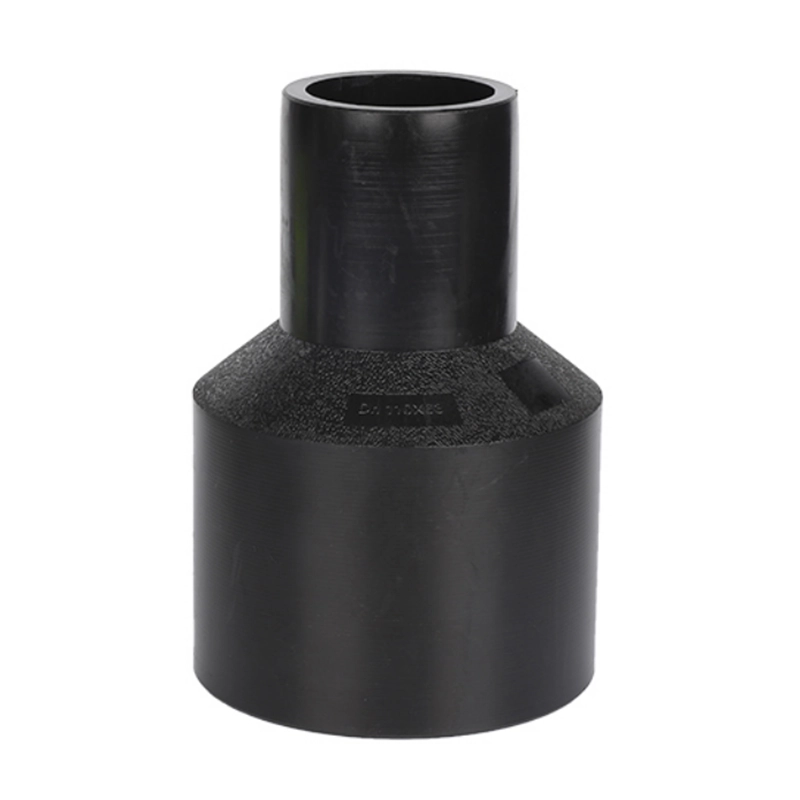

Butt Fusion Reducer HDPE Pipe Fittings

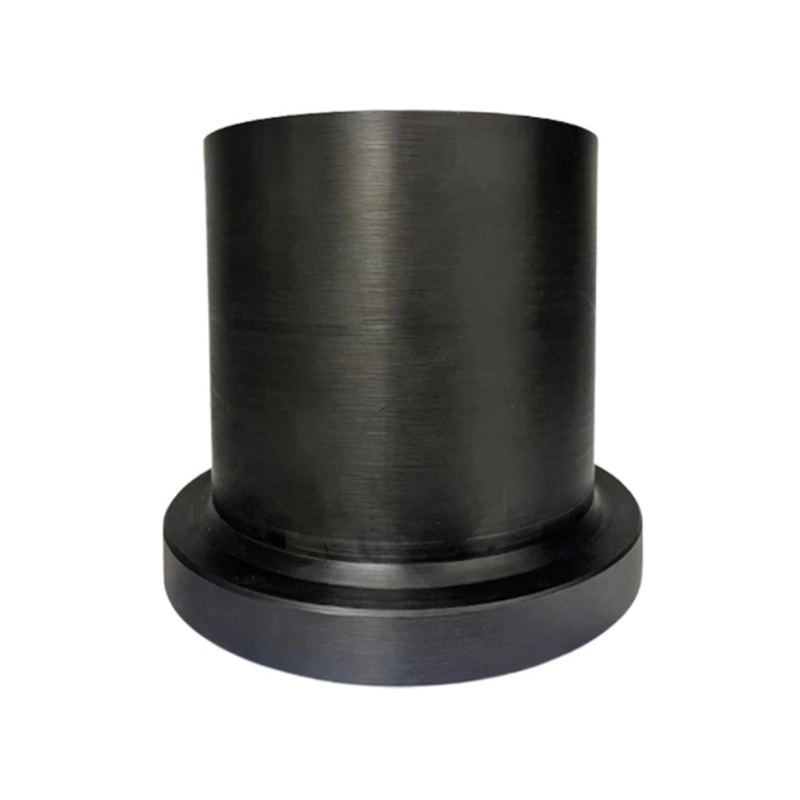

Butt Fusion Stub End Long Neck

Butt Fusion Reducing Cross Tee

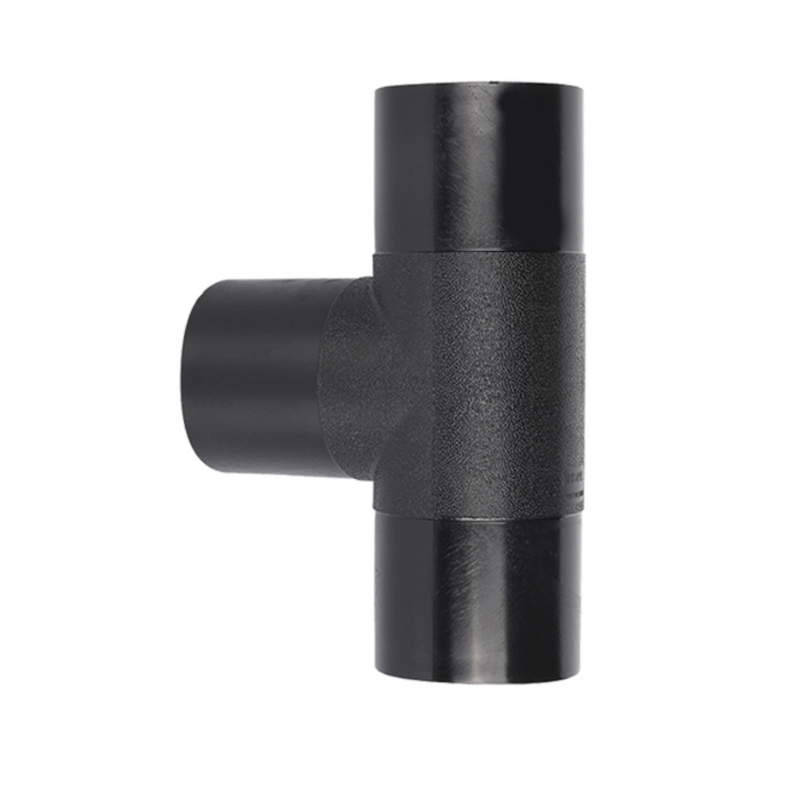

Butt Fusion Equal Tee

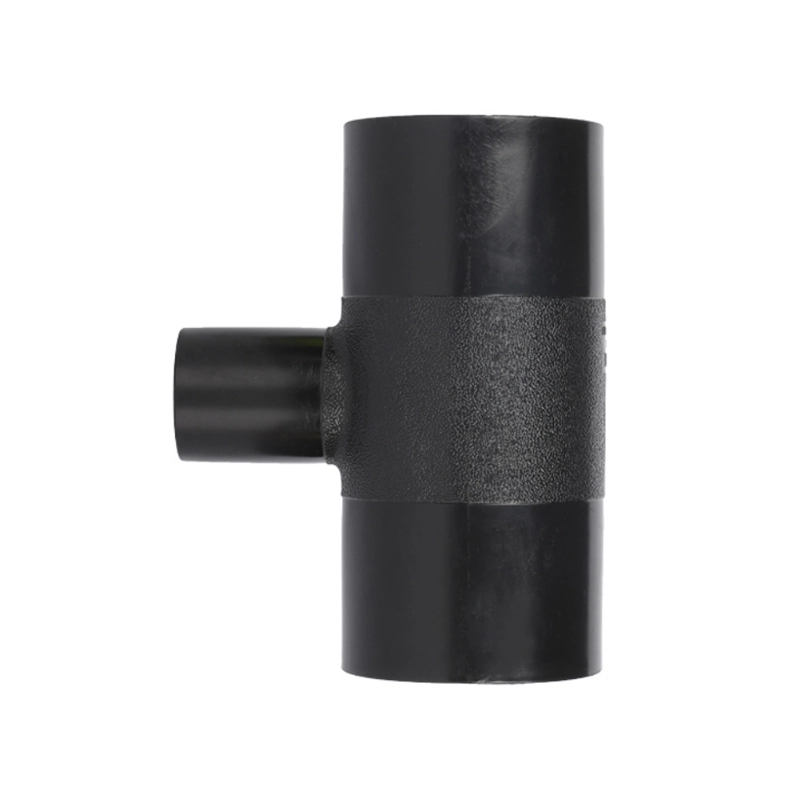

Butt Fusion Reducing Tee

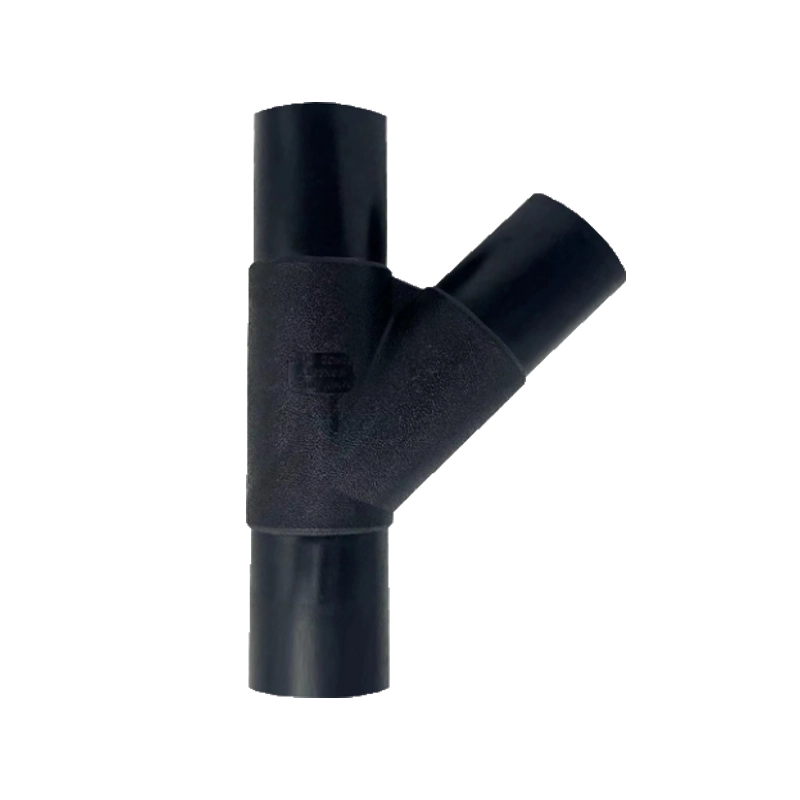

Butt Fusion 45° Branch Y Tee

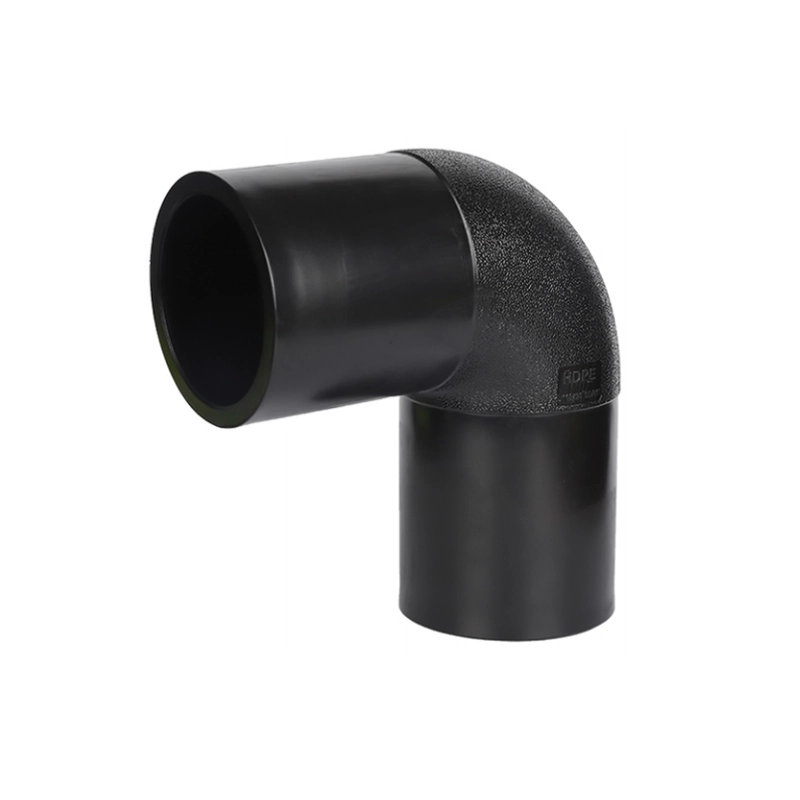

Butt Fusion 90° Elbow

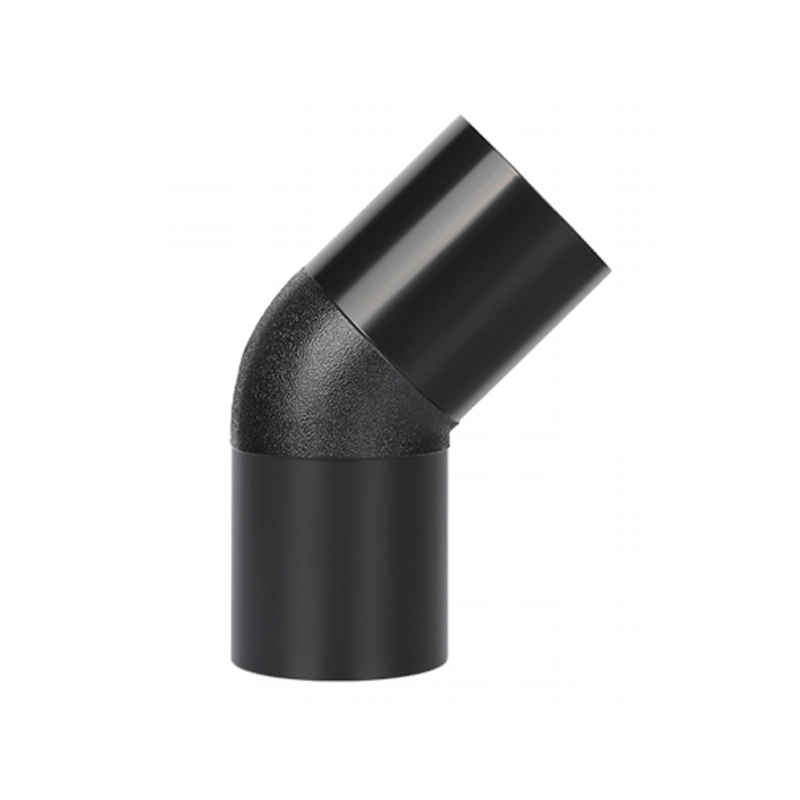

Butt Fusion 45° Elbow

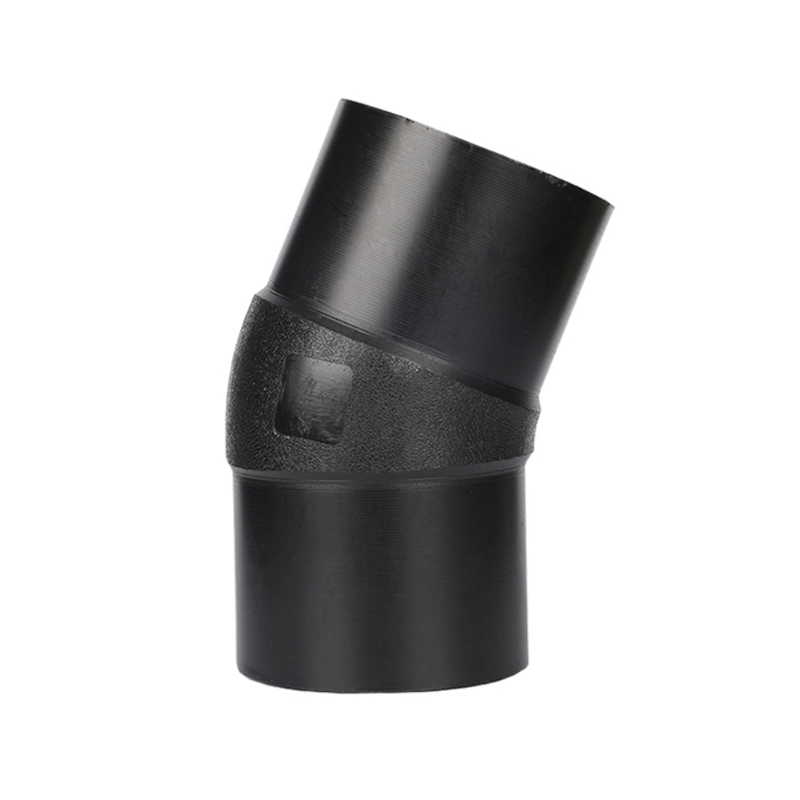

Butt Fusion 22.5° Elbow

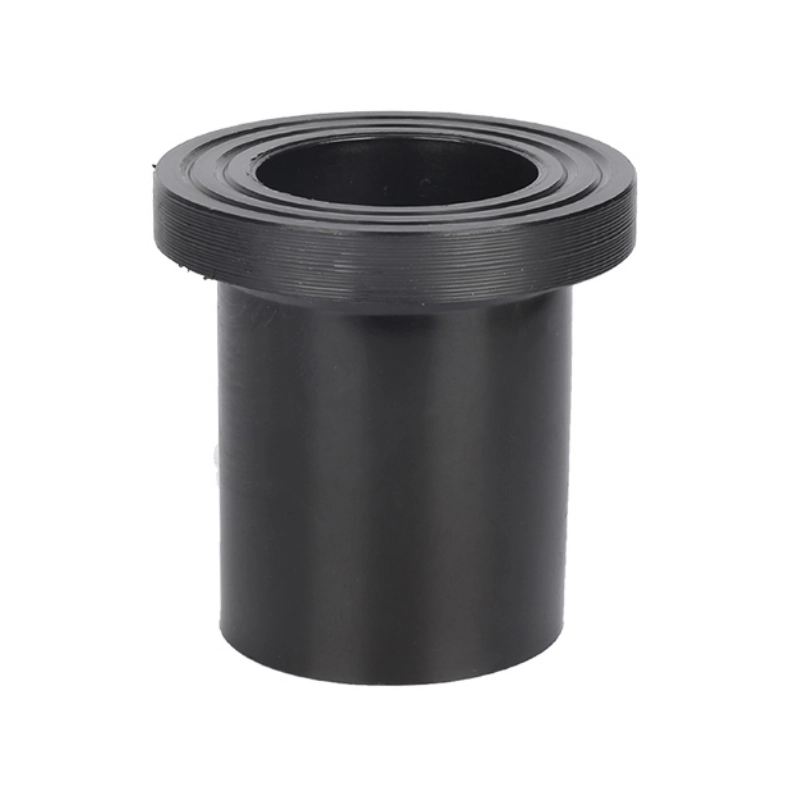

Butt Fusion Stub End/Long Neck

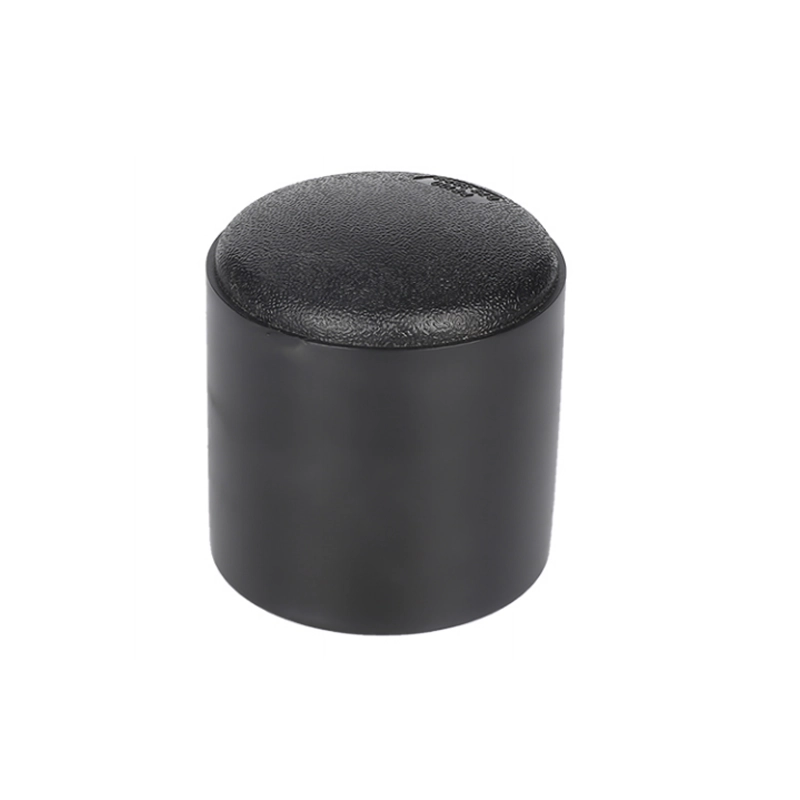

Butt Fusion End Cap

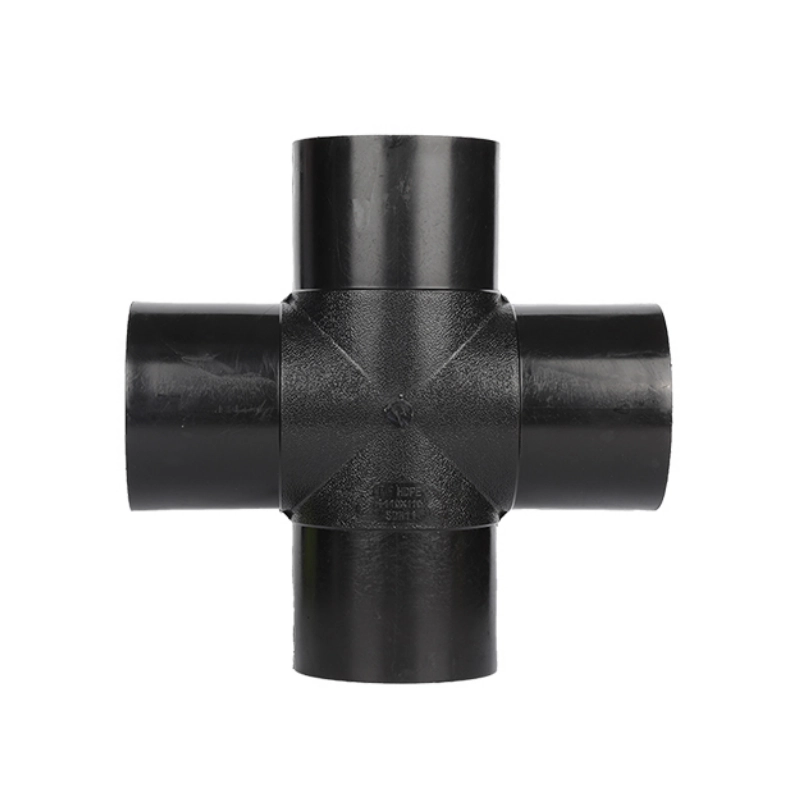

Butt Fusion Cross Tee

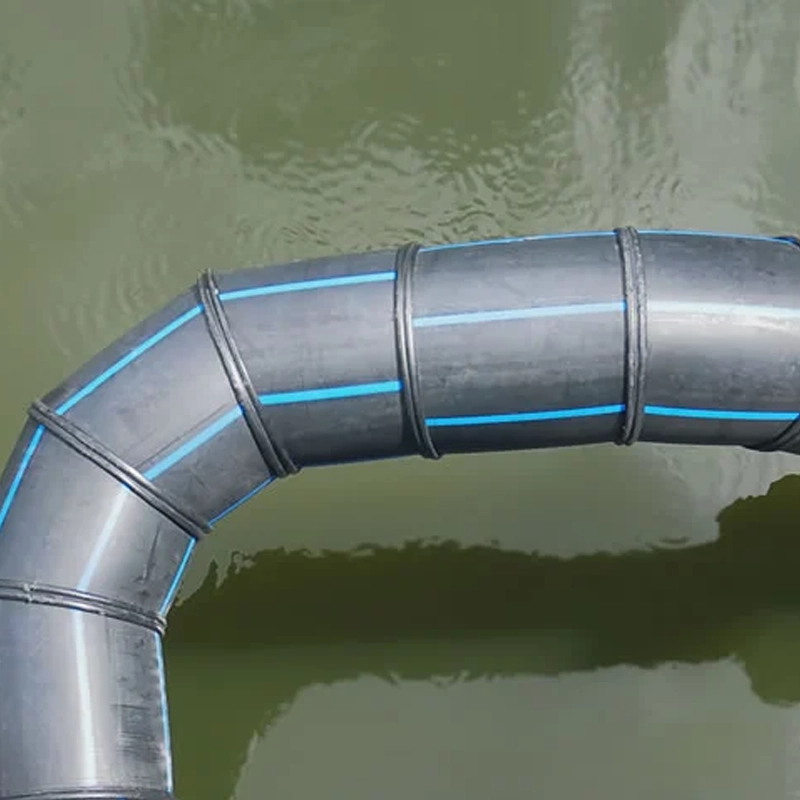

Butt Fusion HDPE Pipe Fittings Feature

1. Butt fusion HDPE pipe fittings have excellent impact resistance and durability, long service life, and an expected service life of up to 60 years.
2. Use butt fusion HDPE fittings to connect PE/HDPE pipes to form seamless joints that maintain the full strength and integrity of the piping system.
3. Butt fusion HDPE pipe fittings are made of high quality PE100 or PE80 materials, which are resistant to corrosion, scaling and chemical attack.
4. Butt fusion HDPE fittings have strong resistance to external impact and extreme weather conditions, and are very suitable for installation in cold climates and harsh environments.
5. JINQUAN can provide a variety of butt fusion HDPE pipe and fittings sizes and configurations, including elbows, tees, reducers and end caps, etc. to meet different design needs.
6. The flexibility of butt fusion PE pipe fittings gives them excellent impact resistance, allowing them to maintain structural integrity even in harsh environments.

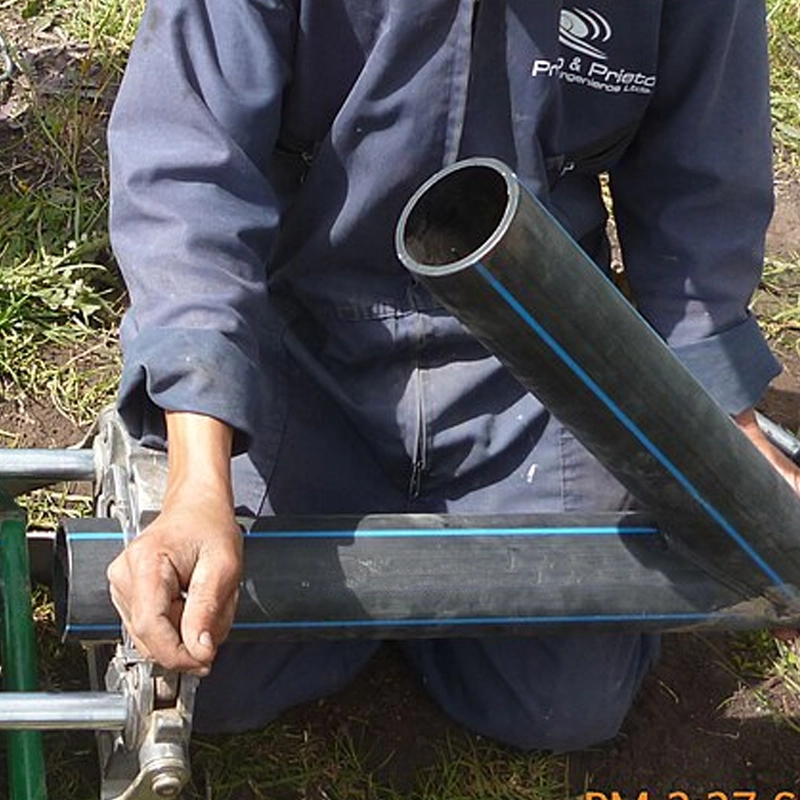

Butt Fusion HDPE Pipe Fittings Application

1. Butt fusion HDPE pipe fittings are used in urban water supply, sewage treatment, rainwater discharge and other projects.
2. Butt fusion HDPE pipe and fittings have excellent sealing and pressure resistance and are suitable for use in gas pipe network systems.
3. Butt fusion PE pipe fittings are corrosion-resistant and have a long service life. They can be used in water conservancy projects such as farmland drip irrigation and sprinkler irrigation.
4. Butt fusion HDPE pipe fittings can be used to transport corrosive or abrasive media such as slurry and chemical liquids.
5. Hot-melt HDPE pipe fittings are highly resistant to corrosion and are suitable for water delivery systems in marine environments.
6. Butt fusion HDPE pipe fittings are pressure resistant, waterproof and corrosion resistant, and are used as cable protection sleeves.

Specification & Dimension

Butt Fusion HDPE Pipe Fittings	Specifications	Thickness			Size	Color	Material
Butt Fusion Reducer	S6325~S12001000	SDR17	-	SDR11	Metric & Custom	Black	HDPE
Butt Fusion Stub End Long Neck	FL63~FL315	SDR17	-	SDR11	Metric & Custom	Black	HDPE
Butt Fusion Reducing Cross Tee	+9063~+800630	SDR17	-	SDR11	Metric & Custom	Black	HDPE
Butt Fusion Equal Tee	T50~T800	SDR17	-	SDR11	Metric & Custom	Black	HDPE
Butt Fusion Reducing Tee	T6325~T800710	SDR17	-	SDR11	Metric & Custom	Black	HDPE
Butt Fusion 45° Branch Y Tee	YT6345°~YT31545°	SDR17	-	SDR11	Metric & Custom	Black	HDPE
Butt Fusion 90° Elbow	L5090°~L80090°	SDR17	-	SDR11	Metric & Custom	Black	HDPE
Butt Fusion 45° Elbow	L5045°~L80045°	SDR17	-	SDR11	Metric & Custom	Black	HDPE
Butt Fusion 22.5° Elbow	L9022.5°~L80022.5°	SDR17	SDR13.6	SDR11	Metric & Custom	Black	HDPE
Butt Fusion Stub End	FL50~FL1200	SDR17	-	SDR11	Metric & Custom	Black	HDPE
Butt Fusion End Cap	D63~D1200	SDR17	-	SDR11	Metric & Custom	Black	HDPE
Butt Fusion Cross Tee	+63~+800	SDR17	SDR13.6	SDR11	Metric & Custom	Black	HDPE
Other	Customization is available beyond standard sizes
