Male Female Thread HDPE Pipe Fittings

Male and female thread HDPE pipe fittings are connectors specially designed for HDPE (high-density polyethylene) pipe systems. They have male threads on one end and female threads on the other end, which can achieve a safe and leak-proof connection between pipes, valves or equipment. They can achieve flexible, safe and reusable connections in permanent and temporary piping systems.

Common male and female thread HDPE fittings include female/male coupling, female/male elbow, and female/male tee. Sometimes the threaded ends are also reinforced with brass or stainless steel inserts to increase durability and prevent deformation of the threads during repeated use.

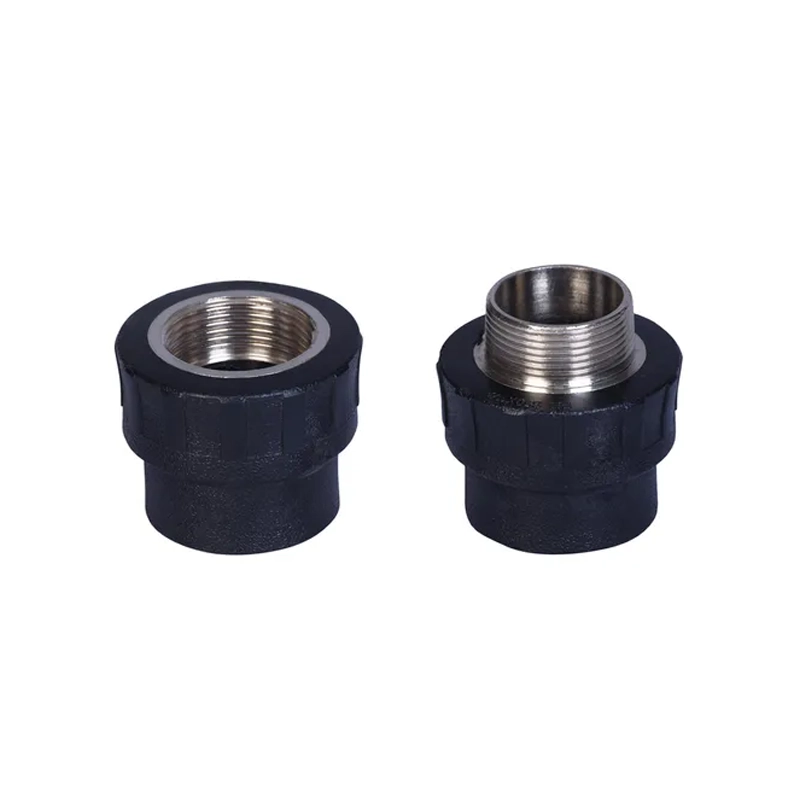

Female Coupling Thread HDPE Pipe Fittings-1

Female Thread Coupling-2

Male Thread Coupling-1

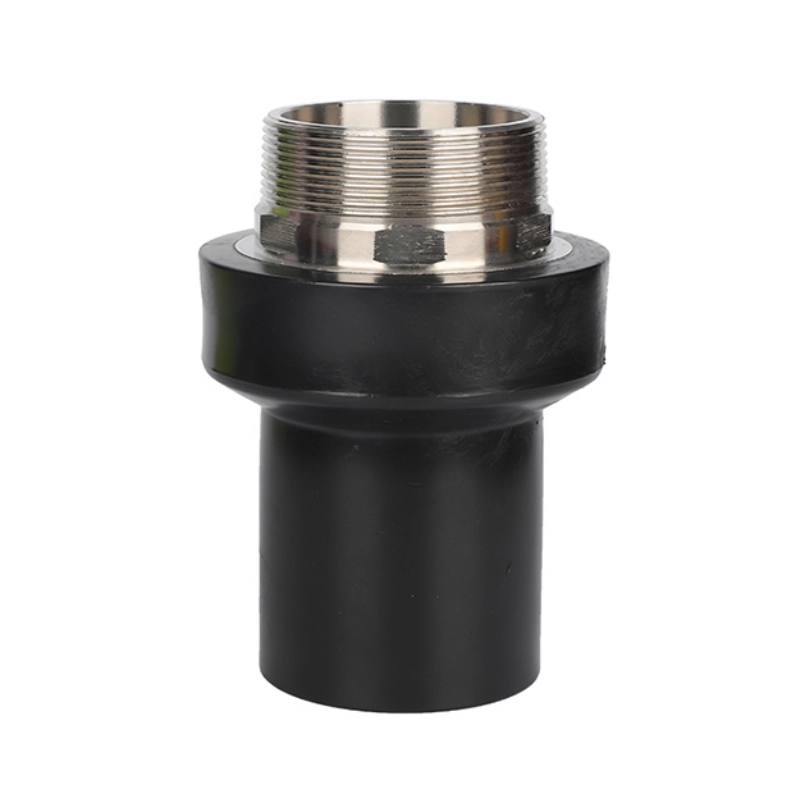

Male Thread Coupling-2

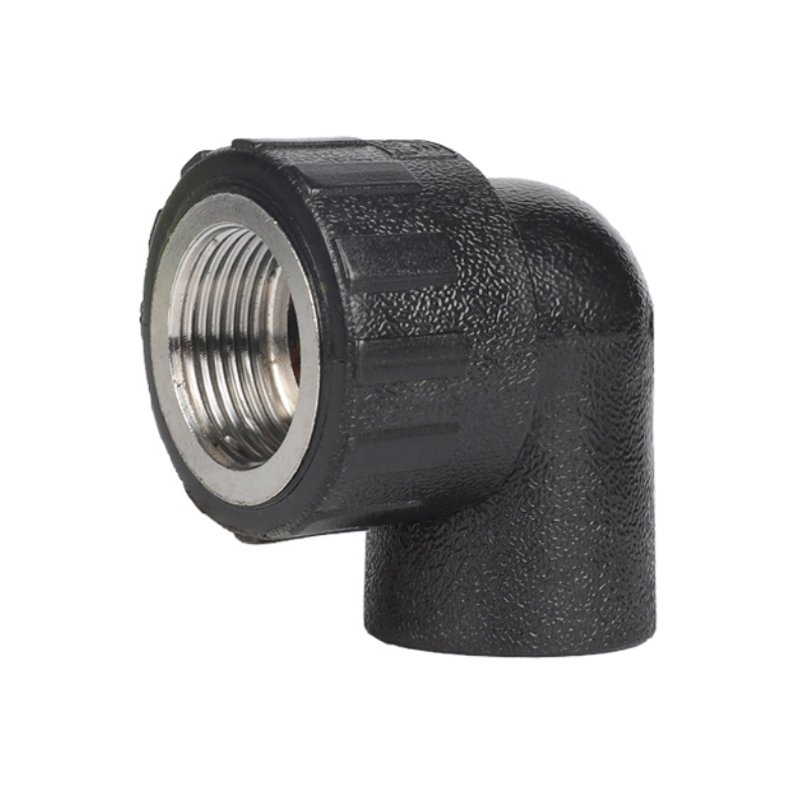

Female Thread Elbow

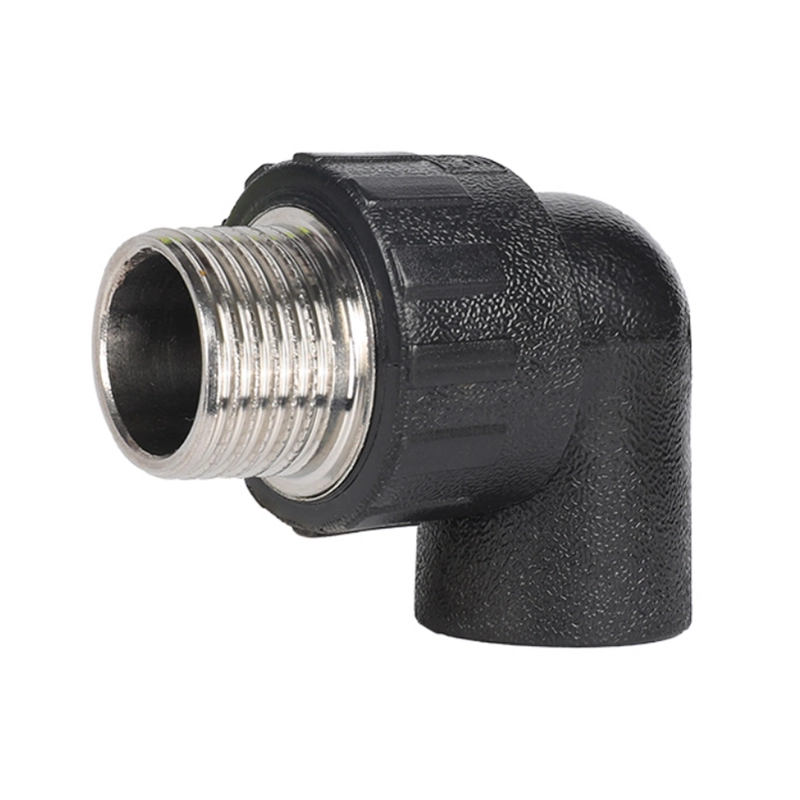

Male Thread Elbow

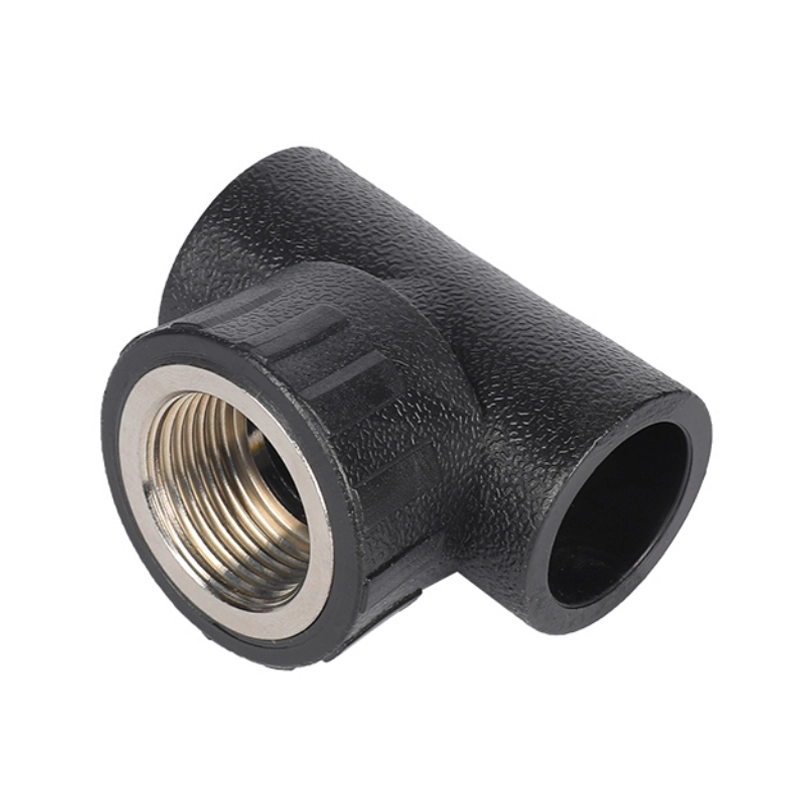

Female Thread Tee

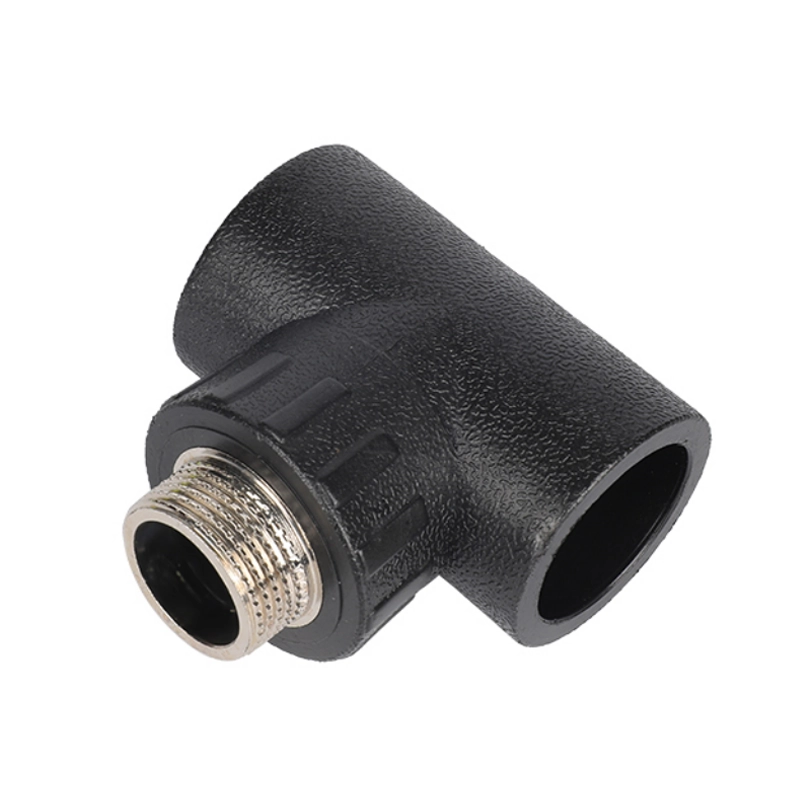

Male Thread Tee

Thread HDPE Pipe Fittings Feature

1. Thread HDPE pipe fittings have excellent impact resistance and durability, long service life, and an expected service life of up to 60 years.
2. Threaded HDPE fittings are made of high-density polyethylene (HDPE), which has excellent resistance to impact, cracking and corrosion.
3. The male and female threads of HDPE fittings are molded or machined with high precision to ensure a tight, secure connection that prevents leaks or loosening under pressure.
4. HDPE is naturally resistant to rust, electrochemical corrosion and scaling, making it ideal for long-term use underground or in corrosive environments.
5. The thread design of HDPE pipe fittings, when used in conjunction with appropriate sealing tapes or sealants, can provide a highly reliable and leak-proof seal for fluid and gas delivery.
6. Threaded pipes fittings are easy to install and maintain, no welding required, and can be easily installed using basic hand tools. No need to cut the pipe to tighten, adjust or replace the threaded connection.

Thread HDPE Pipe Fittings Application

1. Thread HDPE pipe fittings are often used for quick connection of drip irrigation, sprinkler irrigation and underground pipelines. Its corrosion resistance and weather resistance make it suitable for long-term use outdoors and in complex soil environments.
2. Male and female HDPE fittings are used for the connection between urban secondary water supply pipes, rural tap water projects, small water towers and reservoirs and pipe networks.
3. In gardening and greenhouse management, threaded pipe fittings are suitable for connecting sprinklers, manifolds and main pipes.
4. Thread HDPE pipe fittings are suitable for low-pressure transportation of some non-corrosive industrial media (such as cooling water and cleaning water).
5. Female/male thread PE pipe fittings can be used to transport compressed air, especially suitable for occasions with high requirements on pipeline mobility and flexibility.
6. Since threaded PE pipe fittings can be reused, they are often used in temporary water supply projects, construction site water supply systems and emergency pipeline maintenance work.

Specification & Dimension

Male/Female Thread HDPE Pipe Fittings	Specifications	Size	Color	Material
Female Coupling Thread HDPE Pipe Fittings-1	S201/2F~S1104F	Metric & Custom	Black	HDPE
Female Coupling-2	S201/2F~S1104F	Metric & Custom	Black	HDPE
Male Coupling Thread HDPE Pipe Fittings-1	S201/2M~S1104M	Metric & Custom	Black	HDPE
Male Coupling-2	S201/2M~S1104M	Metric & Custom	Black	HDPE
Female Elbow	L201/2F~L632F	Metric & Custom	Black	HDPE
Male Elbow	L201/2M~L632M	Metric & Custom	Black	HDPE
Female Tee	T201/2F~T632F	Metric & Custom	Black	HDPE
Male Tee	T201/2M~T632M	Metric & Custom	Black	HDPE
Other	Customization sizes
