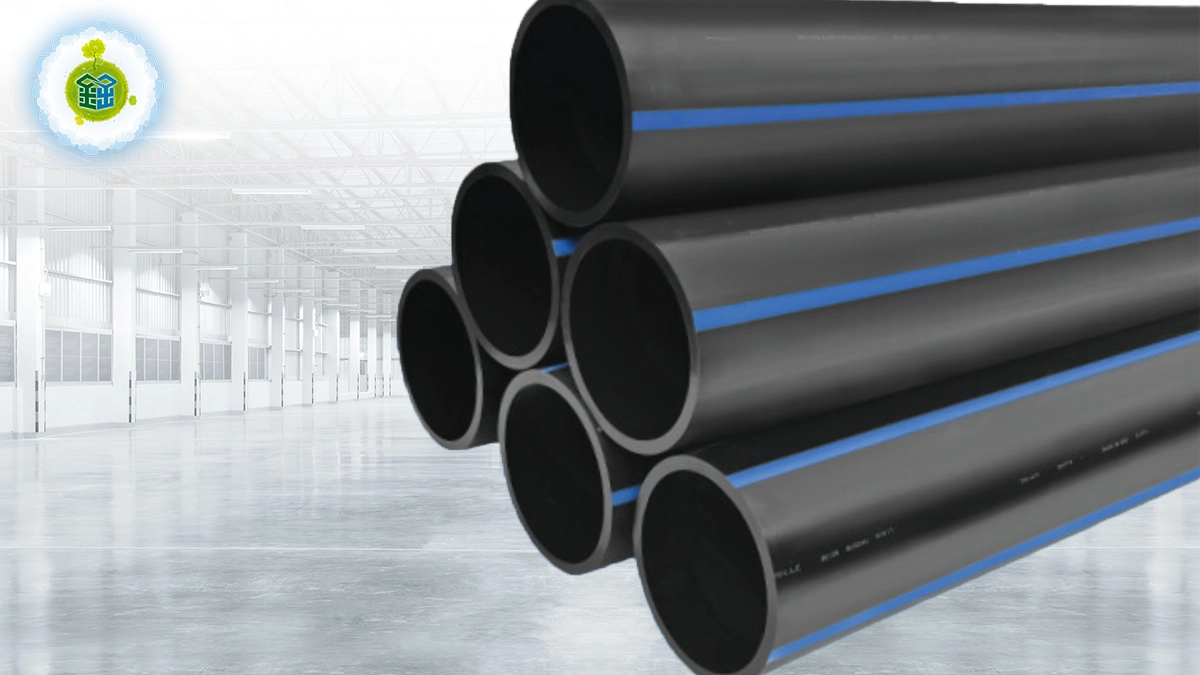

HDPE Pipe for Industry and Chemical
- 1. Diameter: DN20-2000mm (1/2 inch-80 inch).
- 2. Standard Dimension Ratio: SDR41, SDR33, SDR26, SDR21, SDR17, SDR13.6, SDR11, SDR9, SDR7.4, SDR6.
- 3. Pressure Class: PN4, PN5, PN6, PN8, PN10, PN12.5, PN16, PN20, PN25, PN32.
- 4. Packing: 11.8m, 11.9m, 5.8m, or 5.9m/pcs for straight, 100-200m by coils for DN20-90mm.
- 5. Delivery: 5-10 days depending on the total quantity.
- 6. Product inspection: Raw material inspection. Finished product inspection. Third party inspection upon clients request.
- 7. Customization: Specifications and sizes can be customized according to requirements.
Industrial HDPE Pipe Feature
- 1. HDPE pipe has excellent electrical insulation performance and high safety performance
- 2. PE 100 pipe has excellent wear resistance and scratch resistance, and can keep the surface intact even under harsh conditions.
- 3. HDPE pipes have strong impact resistance, effectively resist external physical damage and extend service life.
- 4. HDPE pipes are light, smooth, have low friction resistance, are easy to install and maintain, and are connected by butt fusion connecting.
Industrial HDPE Pipe Application
- 1. Industrial HDPE pipes are widely used in conveying corrosive chemical media such as acids, alkalis and salts.
- 2. HDPE pipes are often used in industrial wastewater discharge and pipe network construction in sewage treatment plants.
- 3. HDPE pipes are suitable for conveying highly abrasive media containing solid particles such as ore slurry and tailings.
- 4. HDPE pipes can be used to transport circulating cooling water, with stable performance and good temperature resistance.
- 5. PE100 pipes are used to connect process pipelines of production equipment, including water supply, drainage and process fluid transportation.
Specification & Dimension
| ASTM F714 SDR | SDR 33 | SDR 26 | SDR 21 | SDR 17 | SDR 13.6 | SDR 11 | SDR 9 | SDR 7.4 | |
|---|---|---|---|---|---|---|---|---|---|
| Nominal Pressure (PE 100) | PN5 (0.5Mpa) | PN6 (0.6Mpa) | PN8 (0.8Mpa) | PN10 (1.0Mpa) | PN12.5 (1.25Mpa) | PN16 (1.6Mpa) | PN20 (2.0Mpa) | PN25 (2.5Mpa) | |
| Nominal Size DN (mm) | Equiv Size (in) | Wall Thickness(mm) | |||||||
| 16 | 2 | 2.3 | |||||||
| 20 | 0.79 | 1.5 | 2 | 2.3 | 3 | ||||
| 25 | 0.98 | 0.76 | 0.8 | 1.2 | 1.5 | 2 | 2.3 | 3 | 3.5 |
| 32 | 1.26 | 0.97 | 1 | 1.5 | 2 | 2.4 | 3 | 3.6 | 4.4 |
| 40 | 1.57 | 1.21 | 1.2 | 2 | 2.4 | 3 | 3.7 | 4.5 | 5.5 |
| 50 | 1.97 | 1.52 | 2 | 2.4 | 3 | 3.7 | 4.6 | 5.6 | 6.9 |
| 63 | 2.48 | 1.91 | 2.5 | 3 | 3.8 | 4.7 | 5.8 | 7.1 | 8.6 |
| 75 | 2.95 | 2.27 | 2.9 | 3.6 | 4.5 | 5.6 | 6.8 | 8.4 | 10.3 |
| 90 | 3.54 | 2.73 | 3.5 | 4.3 | 5.4 | 6.7 | 8.2 | 10.1 | 12.3 |
| 110 | 4.33 | 3.33 | 4.2 | 5.3 | 6.6 | 8.1 | 10 | 12.3 | 15.1 |
| 125 | 4.92 | 3.79 | 4.8 | 6 | 7.4 | 9.2 | 11.4 | 14 | 17.1 |
| 140 | 5.51 | 4.24 | 5.4 | 6.7 | 8.3 | 10.3 | 12.7 | 15.7 | 19.2 |
| 160 | 6.3 | 4.85 | 6.2 | 7.7 | 9.5 | 11.8 | 14.6 | 17.9 | 21.9 |
| 180 | 7.09 | 5.45 | 6.9 | 8.6 | 10.7 | 13.3 | 16.4 | 20.1 | 24.6 |
| 200 | 7.87 | 6.06 | 7.7 | 9.6 | 11.9 | 14.7 | 18.2 | 22.4 | 27.4 |
| 225 | 8.86 | 6.82 | 8.6 | 10.8 | 13.4 | 16.6 | 20.5 | 25.2 | 30.8 |
| 250 | 9.84 | 7.58 | 9.6 | 11.9 | 14.8 | 18.4 | 22.7 | 27.9 | 34.2 |
| 280 | 11.02 | 8.48 | 10.7 | 13.4 | 16.6 | 20.6 | 25.4 | 31.3 | 38.3 |
| 315 | 12.4 | 9.7 | 12.1 | 15 | 18.7 | 23.2 | 28.6 | 35.2 | 43.1 |
| 355 | 13.98 | 10.9 | 13.6 | 16.9 | 21.1 | 26.1 | 32.2 | 39.7 | 48.5 |
| 400 | 15.75 | 12.3 | 15.3 | 19.1 | 23.7 | 29.4 | 36.3 | 44.7 | 54.7 |
| 450 | 17.72 | 13.8 | 17.2 | 21.5 | 26.7 | 33.1 | 40.9 | 50.3 | 61.5 |
| 500 | 19.69 | 15.3 | 19.1 | 23.9 | 29.7 | 36.8 | 45.4 | 55.8 | 67.6 |
| 560 | 22.05 | 17.2 | 21.4 | 26.7 | 33.2 | 41.2 | 50.8 | 62.5 | 75.7 |
| 630 | 24.8 | 19.3 | 24.1 | 30 | 37.4 | 46.3 | 57.2 | 70.3 | 85.1 |
| 710 | 27.95 | 21.8 | 27.2 | 33.9 | 42.1 | 52.2 | 64.5 | 79.3 | 95.9 |
| 800 | 31.5 | 24.5 | 30.6 | 38.1 | 47.4 | 58.8 | 72.6 | 89.3 | |
| 900 | 35.43 | 27.6 | 34.4 | 42.9 | 53.3 | 66.2 | 81.7 | ||
| 1000 | 39.37 | 30.6 | 38.2 | 47.7 | 59.3 | 72.5 | 90.2 | ||
| 1200 | 47.24 | 36.7 | 45.9 | 57.2 | 67.9 | 88.2 | |||
| 1400 | 55.12 | 42.9 | 53.5 | 66.7 | 82.4 | 102.9 | |||
| 1600 | 62.99 | 61.2 | 76.2 | 94.1 | 117.6 | ||||
| 1800 | 70.86 | 69.1 | 85.7 | 105.9 | |||||
| 2000 | 78.74 | 76.9 | 95.2 | 117.6 |
HDPE Pipe Introduction
| Products Details Information | Company/Factory Strength | ||
|---|---|---|---|
| Product name | High Density Polyethylene (HDPE) Pipe for Industry & Chemical | Production Capacity | 200*40ft containers/month |
| Brand | JINQUAN HDPE Pipe(or OEM) | Sample | Free sample available |
| Dia. ranges | DN20-2000mm(1/2 inch-80 inch) | Delivery time | 5-10 days, depending on the quantity |
| Pressure Class | SDR17 ~ SDR6; PN10 ~ PN32 | Test/Inspection | National standard laboratory, Pre-delivery inspection |
| Standards | ISO 4427, ASTM 3035, ASTM F714, EN12201, AS/NZS4130, DIN8074, GOST18599, DIPS | Certificates | ISO9001, ISO14001, ISO45001, CE... |
| Raw material | PE80, PE100, PE4710, PE3608, PE100RC... | Management | effective 8S management system |
| Color | black with blue stripes, or other colors clients want | Warranty | 60 years with normal use |
| Packing | 5.8m or 11.8m/length, 100-200m/roll, for pipe. Cartons or bags, for fittings(customizable) | Quality | QA & QC system, Ensure traceability of each process |
| Application | Chemical plant, Chemical transmission, Mining, Petrochemical plant, Wastewater, Acid bath... | Employees | More than 200 |
| Matching products | Butt fusion hdpe Pipe fittings, Socket fusion hdpe pipe fittings, Electrofusion hdpe pipe fittings, Compression fittings, Welding machines and tools, etc. | Service | Research, Design, Sales, Solution providing, Test, Manufacture, Aftersales service |
HDPE Pipe Indicator
| Test Item | Indicator | Test Method |
|---|---|---|
| Melt Mass Flow Rate (g/10 min) | MFR change before and after processing ≤ 20% | GB/T 3682.1-2018 |
| Oxidation Induction Time | ≥ 20 min | GB/T 19466.6-2009 |
| Longitudinal Retraction Rate | ≤ 3% | GB/T 6671-2001 |
| Carbon Black Content | 2.0% ～ 2.5% | GB/T 13021-1991 |
| Carbon Black Dispersion | ≤ Grade 3 | GB/T 18251-2000 |
| Pigment Dispersion | — | — |
| Ash Content | ≤ 0.1% | GB/T 9345.1-2008 |
| Elongation At Break | ≥ 350% | GB/T 8004.3-2003 |
| Resistance to Slow Crack Growth en ≤ 5 mm (Cone Test) | < 10 mm / 24h | GB/T 19279-2003 |
| Resistance to Slow Crack Growth en ＞ 5 mm (Incision Test) | No damage, no leakage | GB/T 18476-2001 |
| Hydrostatic Pressure Strength 20℃, 100h | No damage, no leakage | GB/T 6111-2003 |
| Hydrostatic Pressure Strength 80℃, 165h | No damage, no leakage | GB/T 6111-2003 |
| Hydrostatic Pressure Strength 280℃, 1000h | No damage, no leakage | GB/T 6111-2003 |
| Note: The above indicators refer to PE pipe material quality control standards. |
Quality Ensurance
Quality inspection process
- Environmentally friendly raw materials are recyclable
- Material chemical composition analysis and physical property test
- Each process must be inspected and qualified before continuing
- Thickness and weight test of each product
- Each pipe is not put into storage until after final inspection.
Certificate Showcase
HDPE Pipe Advantages
1. Versatile Applications
Jinquan PE pipes are widely used across multiple sectors, including water supply, gas distribution, sewage systems, irrigation, and industrial piping.
2. Long Service Life & High Flow Efficiency
Designed for longevity, PE HDPE pipes provide minimal friction loss and high flow efficiency, with a service life of 50–60 years or more under normal conditions.
3. Easy to Install & Transport
Lightweight and flexible, Jinquan PE HDPE pipes are easy to handle and install, reducing overall labor and transportation costs while accelerating project timelines.
4. Top-Notch Strength & Toughness
Engineered for resilience, these pipes withstand high pressure and tough environmental conditions, ensuring stable performance in demanding applications.
5. Minimal Maintenance
Resistant to rust, corrosion, scaling, and chemical erosion, PE HDPE pipes require very little maintenance, leading to long-term operational savings.
6. Exceptional Flexibility
With a bending radius up to 30 times smaller than traditional pipes, PE HDPE pipes can adapt to varied terrain and tight spaces without cracking or compromising integrity.
7. Competitive Pricing
Jinquan offers cost-effective PE HDPE pipe solutions, tailored to your specific project requirements without compromising quality.
