HDPE DWC Pipe

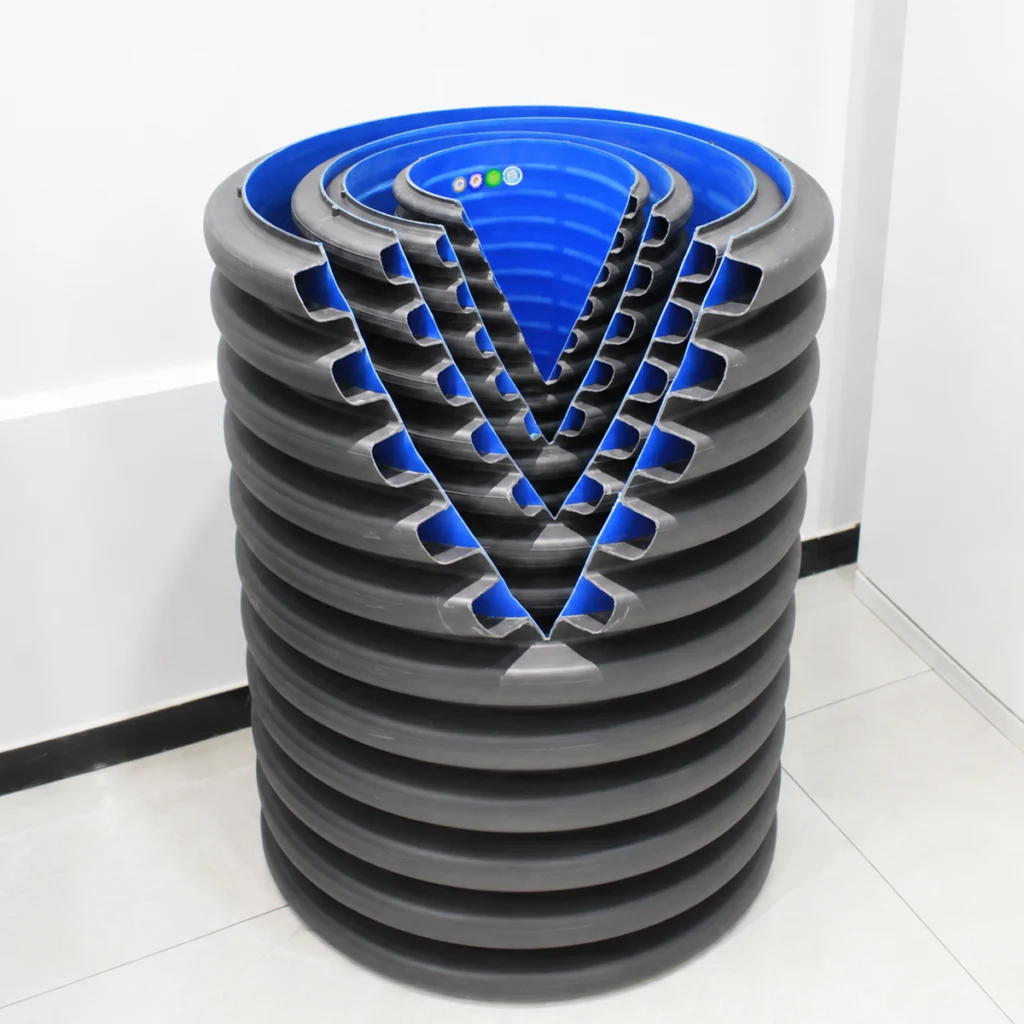

HDPE DWC pipe, also known as double wall corrugated pipe, features a corrugated outer wall and a smooth inner wall. It is designed for non-pressure underground drainage, sewer, stormwater, agricultural drainage and cable protection projects requiring high ring stiffness, corrosion resistance and efficient flow performance.
- Diameter: DN110-1200mm.
- Ring Stiffness: SN4, SN8
- Material: High-Density Polyethylene
- Length: 6m.
- Structure: Corrugated outer wall and smooth inner wall
- Connection: Socket with rubber sealing ring
- Main Application: Underground drainage and sewer systems
- Delivery: 7-10 days depending on the total quantity.
Double Wall Corrugated Pipe Feature
- 1. DWC pipes are produced from the highest quality HDPE raw materials and have a long service life of 50 to 70 years.
- 2. The HDPE DWC pipe has a double-wall design, with a corrugated outer wall for high strength and a smooth inner wall for easy flow.
- 3. The DWC pipe has high ring stiffness and excellent ability to resist external loads and soil pressure.
- 4. Double wall corrugated pipes are resistant to corrosion, rust, scale, wear, and UV rays, and can adapt to various extreme environments.
- 5. HDPE corrugated pipes are usually connected with rubber gaskets or couplers to create a watertight seal and the joints are leak-proof and strong.
DWC Pipe Application
- 1. HDPE double wall corrugated pipes can be used in municipal drainage, urban drain piping system.
- 2. DWC sewer pipe can be used in apartments, residential district underground buried sewage drainage.
- 3. Double-wall corrugated pipe are suitable for highway embedded pipeline, golf course underground water seepage pipe network.
- 4. HDPE corrugated pipe can be used in chemical industry, mining used in fluid transport and ventilation, etc.
- 5. HDPE double wall corrugated pipes can be used for irrigation water, draining water projects, etc.
- 6. DWC drainage pipe can be used for underground pipeline protection and communication cable protective pipe, etc.
Specification & Dimension
| DN/OD | Min. Average Outer Diameter | Max. Average Outer Diameter | Min. Average Inner Diameter | Min. Laminated Wall Thickness | Min. Inner Wall Thickness | Min. Outer Wall Thickness | Min. Connection Length |
|---|---|---|---|---|---|---|---|
| 110 | 109.4 | 110.4 | 90 | 1 | 0.8 | 0.7 | 32 |
| 125 | 124.3 | 125.4 | 105 | 1.1 | 1 | 0.8 | 35 |
| 160 | 159.1 | 160.5 | 134 | 1.2 | 1 | 0.8 | 42 |
| 200 | 198.8 | 200.6 | 167 | 1.4 | 1.1 | 0.9 | 50 |
| 250 | 248.5 | 250.8 | 209 | 1.7 | 1.4 | 0.9 | 55 |
| 315 | 313.2 | 316 | 263 | 1.9 | 1.6 | 1 | 62 |
| 400 | 397.6 | 401.2 | 335 | 2.3 | 2 | 1.2 | 70 |
| 500 | 497 | 501.5 | 418 | 2.8 | 2.8 | 1.7 | 80 |
| 630 | 626.3 | 631.9 | 527 | 3.3 | 3.3 | 2 | 93 |
| 800 | 795.2 | 802.4 | 669 | 4.1 | 4.1 | 2.5 | 110 |
| 1000 | 994 | 1003 | 837 | 5 | 5 | 3 | 130 |
| 1200 | 1192.8 | 1203.6 | 1005 | 5 | 5 | 3 | 150 |
Quality Ensurance
Quality Inspection Process
- Environmentally friendly raw materials are recyclable
- Material chemical composition analysis and physical property test
- Each process must be inspected and qualified before continuing
- Thickness and weight test of each product
- Each pipe is not put into storage until after final inspection.
Certificate Showcase
JINQUAN DWC Pipe Advantages
1. High Structural Strength for Buried Applications
Jinquan double wall corrugated pipes feature a dual-layer corrugated design—rigid outer wall and smooth inner wall—providing exceptional ring stiffness and load-bearing capacity, ideal for underground drainage and cable protection.
2. Excellent Chemical and Corrosion Resistance
Made from high-quality polyethylene, DWC pipes are resistant to chemicals, corrosion, and moisture, making them suitable for harsh soil and wastewater environments.
3. Smooth Inner Wall for Efficient Flow
The inner wall is designed to be smooth, reducing friction and minimizing the risk of blockages, ensuring efficient wastewater or cable ducting flow.
4. Lightweight Yet Tough
Despite their robust structure, DWC pipes are lightweight, allowing for easy handling, faster installation, and reduced labor costs at the construction site.
5. Flexible Design with Strong Jointing Options
DWC pipes provide excellent flexibility for routing around obstacles and support secure, leak-proof joints that reduce the need for frequent maintenance.
6. Cost-Effective Over Lifecycle
With low installation and maintenance costs, DWC pipes offer long-term value and performance in sewage, stormwater, and cable conduit projects.
7. Long Delivery Lengths Available
Jinquan DWC pipes can be supplied in extended lengths, minimizing the number of joints required and improving system reliability.
8. Standards-Compliant & Widely Accepted
Jinquan DWC pipes comply with relevant national and international standards (e.g., IS, EN), making them a trusted choice for municipal and infrastructure projects.
