HDPE Pipe Project Solution Guide: Pipe, Fittings and Welding Equipment Supply

What Is an HDPE Pipe Project and What Does a Complete Supply Package Include?

At its core, an HDPE pipe project involves building critical infrastructure—think municipal water networks, gas distribution lines, mining slurry routes, or heavy-duty drainage systems—using High-Density Polyethylene. Delivering these builds successfully under an EPC (Engineering, Procurement, and Construction) contract requires a complete supply package. You need three non-negotiable components: the HDPE pipes, precision-matched fittings, and specialized fusion welding gear.

Sourcing this trio from a single, integrated manufacturer is the smartest way to eliminate compatibility risks and keep your procurement timeline on track. Mega-projects demand suppliers with serious production muscle to hit aggressive delivery windows. We are talking about massive operations—facilities spanning 200 acres and pushing out over 100,000 tons annually. That level of scale guarantees that construction phases never stall due to material bottlenecks. Ultimately, buying a bundled package ensures the dimensional tolerances between your pipes and fittings lock together perfectly. That exact alignment is what guarantees zero-leakage fusion joints in the field.

Main Application Scenarios for HDPE Pipe Projects

Engineers heavily favor High-Density Polyethylene for civil and industrial builds because the material outlasts traditional alternatives. It fights off corrosion, flexes under ground movement, and offers an incredibly long service life. However, your specific application dictates exactly which material grade, pressure rating, and structural design you need to specify.

• Water Supply: You will need PE100 grade resin here, typically with pressure ratings spanning PN10 to PN25. The baseline operating temperature sits at 20°C. If your fluid temperatures climb higher than that (maxing out around 40°C), you have to apply strict pressure derating calculations to prevent system failure.
• Gas Distribution: Safety takes total priority. Gas networks demand high Environmental Stress Crack Resistance (ESCR) to stop hazardous leaks before they start. These lines are heavily regulated by international codes like GB/T 15558.1-2015 or ASTM D2513.
• Mining & Slurry: Slurry chews through weak materials. Mining operations require exceptional abrasion resistance to handle coarse, jagged particulates. Contractors often turn to PE100-RC (Resistance to Crack) for trenchless drilling or laying HDPE pipe over harsh, rocky terrain where a standard sand bed just isn’t possible.
• Drainage & Sewage: Gravity-flow waste management relies on Double-Wall Corrugated (DWC) pipes. Featuring SN4 (4 kN/m²) or SN8 (8 kN/m²) ring stiffness, these pipes deliver massive structural integrity while keeping the overall material weight highly manageable.

HDPE Pipe Specifications: Sizes, SDR, PN Ratings and Material Grades

Selecting the correct HDPE pipe specification requires balancing the Standard Dimension Ratio (SDR), Nominal Pressure (PN) rating, pipe diameter, and material grade. SDR is the ratio of the nominal outside diameter to the nominal wall thickness. At the same outside diameter, a lower SDR indicates a thicker wall and generally a higher pressure capacity. The available diameter range depends on the applicable standard, production equipment, SDR, and manufacturer capability.

SDR to PN Mapping (Based on PE100 Water Pipe at 20°C):

Material Grade Comparison:

HDPE Fittings Selection: Types, Connection Methods and Compatibility

A HDPE pipeline is only as strong as its joints. HDPE pipe fittings generally fall into three categories: butt fusion, electrofusion, and PP compression. Your choice here directly impacts how fast your crews can install the line and how well the system holds up under stress.

HDPE Welding Equipment Selection: Butt Fusion vs Electrofusion Machines

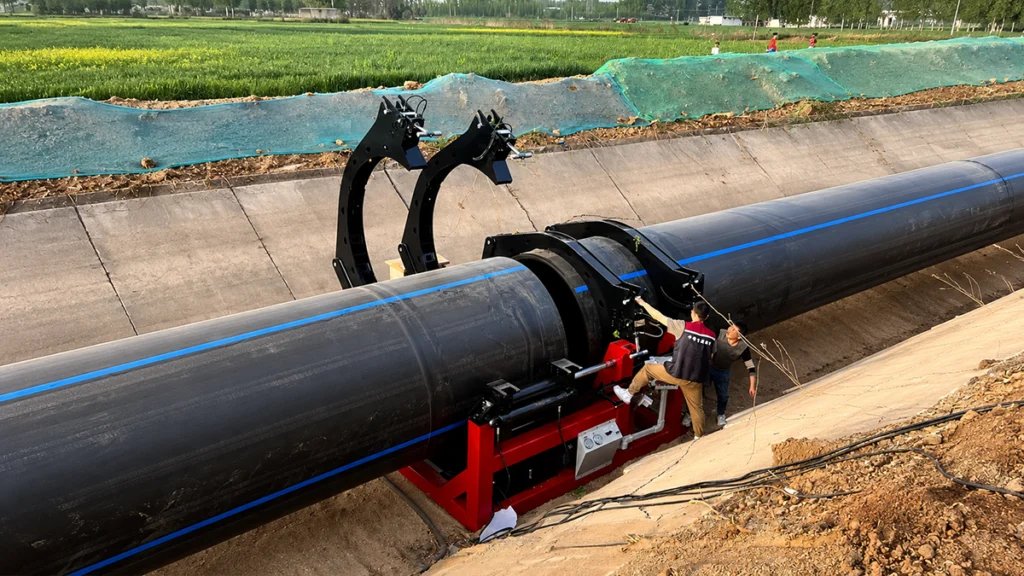

Picking the right fusion machine comes down to two things: pipe diameter and the reality of your job site. Generally, you will rely on hydraulic butt fusion machines for those long, straight open-trench runs. When things get tight or you are working in confined spaces, electrofusion welding machine units become necessary. Whatever you choose, verify the gear complies with ISO 21307 or DVS 2207 standards to guarantee joint integrity.

Machine to Pipe Diameter Mapping:

Equipment Decision Tree for Project Sites:

1. Open trench + long straight runs + DN90 and above: Bring in the Hydraulic Butt Fusion Machines.

2. Confined space + tie-ins/repairs + gas distribution lines: Rely on Electrofusion Machines.

HDPE Pipe Project Cost Breakdown and Budget Planning

Where does the money actually go in a standard EPC contract? Typically, the HDPE pipes themselves consume about 45% to 55% of your total budget. The remaining funds are spread across fittings, welding gear, freight, and installation labor. Mapping out this distribution helps project managers spot clear opportunities to optimize their spend.

Standard EPC Cost Breakdown (Indicative %):

• HDPE Pipe: 45% – 55%
• Fittings & Flanges: 10% – 15%
• Welding Equipment: 5% – 10%
• Freight & Logistics: 5% – 10%
• Installation & Labor: 15% – 20%

*Data Disclaimer:* Actual material prices shift constantly alongside global petrochemical resin indices (USD/ton). That said, securing a bundled package (Pipe + Fittings + Machine) from a single integrated factory routinely slashes total procurement costs by 10-15% thanks to bulk discounts and consolidated shipping.

MOQ, Lead Time, Packaging and Shipping for Export HDPE Pipe Projects

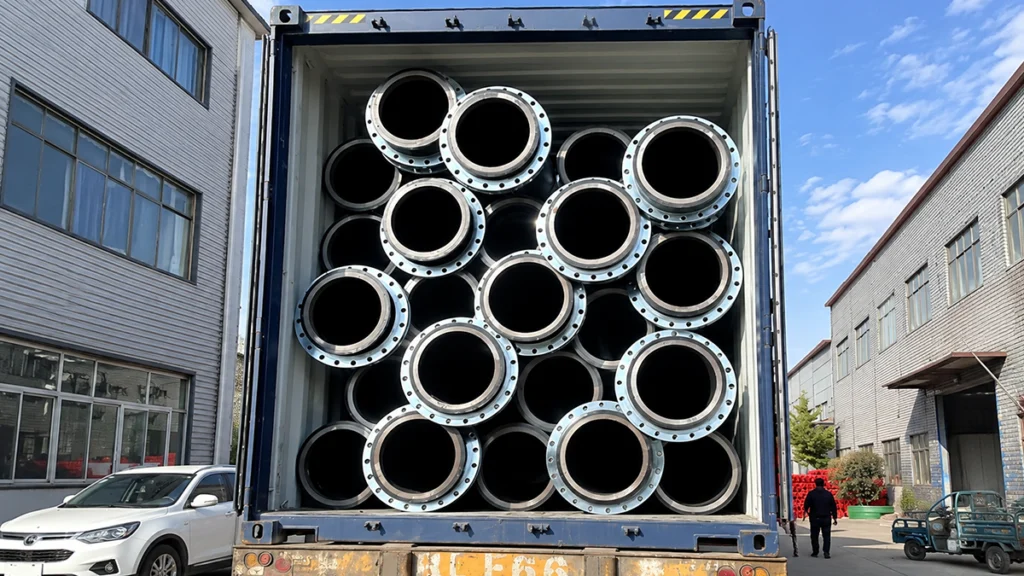

Shipping massive volumes of hollow plastic across oceans requires smart logistics. For EPC contractors handling export bulk orders, strategic packing—specifically pipe nesting—is the secret to maxing out container capacity and keeping ocean freight costs under control. When ordering direct from a major factory, expect standard lead times to hover between 7 and 15 days.

Container Loading & Capacity Strategies:

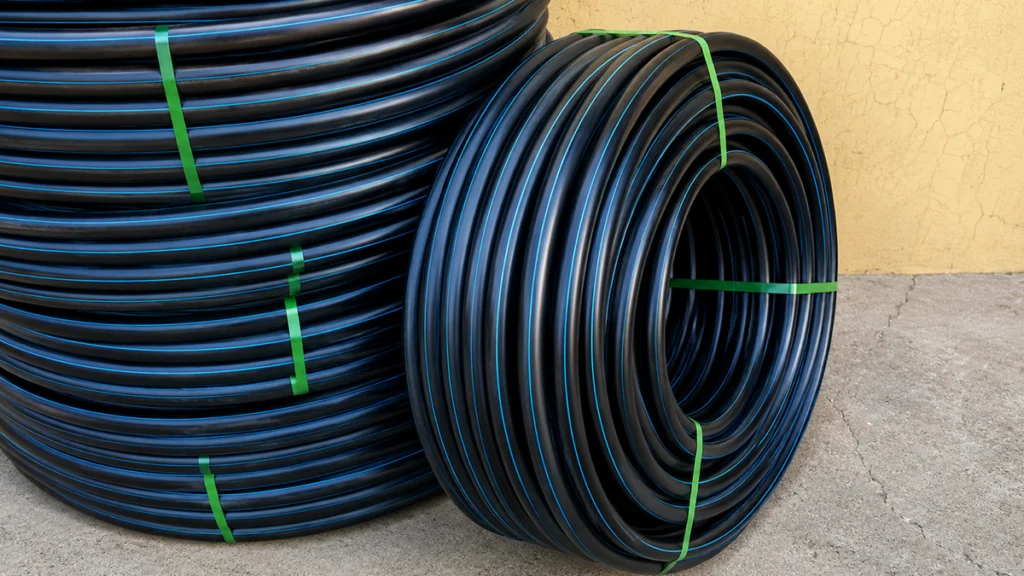

• 20GP Container: Delivers roughly 25-28 CBM of usable space. Use these for dense, heavy cargo like fittings, welding machines, or smaller coiled HDPE pipes (DN16-DN63). If you are loading straight pipes, they must be cut down to 5.8 meters.
• 40HQ Container: Provides about 62-68 CBM of practical capacity and serves as the go-to for bulk straight HDPE pipes. Manufacturers will cut lengths to 11.8 meters to perfectly utilize the internal dimensions.
• Nesting Strategy: Sliding smaller diameter pipes inside larger ones is a non-negotiable tactic for export projects. This single logistical move can shave up to 30% off your total ocean freight bill.

How to Evaluate an HDPE Pipe Project Supplier

Vetting a manufacturing partner takes more than just glancing at a product catalog. You have to audit their resin sources, verify their actual production output, and check their quality control paperwork. Run potential suppliers through this 8-point checklist before signing any purchase orders.

8-Point Supplier Evaluation Checklist:

1. Resin Source: Are they utilizing 100% virgin PE100 resin (from brands like Borouge or Sabic), or are they cutting corners with risky recycled regrind?

2. Production Capacity: Can they actually handle high-volume EPC demands? You want a partner pushing out over 100,000 tons a year.

3. Package Capability: Do they manufacture the HDPE pipes, fittings, and machines under one roof to guarantee perfect system compatibility?

4. Certifications: Verify their paperwork. Look for ISO 9001, ISO 14001, CE, SGS, and ISO 4427 compliance.

5. Testing Lab: Ask for in-house hydrostatic pressure tests and melt mass-flow rate (MFR) reports.

6. Export Experience: Do they actively map out 40HQ container nesting plans and optimize lengths to 11.8m?

7. Lead Time: Will they put a strict 7-15 day delivery guarantee in writing?

8. After-Sales Support: Do they hand over technical welding parameters and offer troubleshooting for your site contractors?

Common Mistakes and Hidden Risks in HDPE Pipe Projects

Even the highest-grade materials will fail if installation protocols are ignored. Project blowouts usually trace back to terrible material selection, sloppy HDPE pipe prep, or crews ignoring strict welding parameters. You have to lock down these risks during installation if you want the pipeline to hit its 50-year design life.

1. Risk: Using recycled/regrind PE material.

• *Avoidance:* Insist on 100% virgin PE100 resin. Demand third-party SGS material test certificates before they even start production.

2. Risk: Improper pipe end cleaning.

• *Avoidance:* Crews must wipe HDPE pipe ends with isopropyl alcohol before applying heat. Dirt, oil, or even slight moisture will create weak, brittle joints that eventually snap.

3. Risk: Incorrect cooling times (Cold Welding).

• *Avoidance:* Follow the DVS 2207 cooling time charts to the letter. Never let crews artificially rush the cooling process by dumping water or throwing wet cloths over fresh fusion joints.

4. Risk: Misalignment during butt fusion.

• *Avoidance:* Invest in high-quality hydraulic welding machines with heavy-duty clamps. Do not let contractors use manual push-machines on HDPE pipes larger than DN160.

5. Risk: Ignoring temperature derating.

• *Avoidance:* If your internal water temperature pushes past 20°C (up to a strict 40°C limit), apply the standard ISO derating factor to your PN rating. Skip this step, and the HDPE pipe will likely rupture.

Practical Buying Recommendations and Project Implementation Steps

A structured procurement strategy keeps budgets in check and timelines on track. Walking through a standardized sequence takes the guesswork out of the equation and prevents costly delays.

• Step 1: BOQ Definition: Lock in a highly detailed Bill of Quantities. Specify the exact DN sizes, SDR/PN ratings, and the maximum operating temperatures the system will face.
• Step 2: Package RFQ: Target integrated manufacturers who can quote the HDPE Pipe, Fitting, and Machine as a single package. This is how you guarantee 100% dimensional compatibility across the board.
• Step 3: Freight Optimization: Demand a comprehensive container loading plan. Look at the math comparing 20GP versus 40HQ containers, and make sure they are utilizing HDPE pipe nesting techniques.
• Step 4: Quality Audit: Get physical samples in hand. Review third-party test reports and set up a virtual or physical factory tour to prove they have the production capacity they claim.
• Step 5: Execution: Issue the PO, book a third-party pre-shipment inspection (like SGS), and secure the official factory welding parameter charts so your site contractors know exactly how to fuse the system.

Frequently Asked Questions

Q1: What is included in a complete HDPE pipe project supply package?

A complete project package may include HDPE pipes, compatible butt fusion, electrofusion, or compression fittings, welding equipment, reducing inserts, valves, flange connections, spare parts, and technical documents. Sourcing these items from one experienced supplier can simplify compatibility checks, logistics, installation support, and project coordination for EPC contractors.

Q2: How do I choose between PE80 and PE100 for my HDPE pipe project?

PE100 has a Minimum Required Strength (MRS) of 10 MPa, compared with 8 MPa for PE80. This allows PE100 to achieve a higher pressure rating or a thinner wall under comparable design conditions. PE80 remains suitable where permitted by the applicable standard and project specification. The final choice should consider pressure, SDR, diameter, temperature, service life, availability, and local requirements.

Q3: What is the typical lead time for a large HDPE pipe project order?

Lead time depends on pipe diameter, SDR, order quantity, material grade, customization, testing, and production schedule. Standard specifications may be ready within approximately 7 to 15 days when materials and production capacity are available, while large or customized project orders may require additional time. Buyers should confirm the production and shipping schedule before ordering.

Q4: Which welding machine is best for DN110 to DN630 HDPE pipes?

For straight pipeline installation, select a hydraulic butt fusion machine whose welding range covers the required outside diameters, such as 90–315 mm, 160–450 mm, or 315–630 mm models. Butt fusion is commonly used for long pipe runs, while electrofusion equipment may be more practical for repairs, branch connections, confined spaces, or locations where a butt fusion machine cannot be positioned.

Q5: How much does a 1 km HDPE pipe project cost on average?

The cost of a 1 km HDPE pipeline depends on the pipe diameter, SDR, material grade, application, fittings, installation method, transportation, and local labor costs. Trenching, valves, welding, testing, and site conditions can also significantly affect the final budget. Buyers should prepare a detailed bill of quantities and request a project-specific quotation rather than relying on a fixed cost per kilometer.

Q6: Can one supplier provide HDPE pipe, fittings and welding equipment together?

Yes. An integrated supplier may provide HDPE pipes, compatible fittings, butt fusion or electrofusion equipment, reducing inserts, valves, and related accessories. Sourcing the package from one supplier can simplify compatibility checks, documentation, logistics, and technical support, but all products and welding procedures should still be verified against the project specification.

Q7: What certifications should an HDPE pipe project supplier have?

The required certifications depend on the application, destination market, and project specification. Buyers should review the applicable product standard, quality-management certificates, raw-material certificates, batch inspection reports, dimensional results, and relevant pressure and material test reports. For water projects, ISO 4427 may apply, while gas, mining, industrial, or drainage systems may require different standards or approvals.

Q8: What are the most common installation mistakes in HDPE pipe projects?

Common mistakes include poor pipe-end preparation, contaminated fusion surfaces, incorrect alignment, unverified welding parameters, excessive changeover time, insufficient cooling, and moving the joint too early. Other risks include using equipment outside its rated welding range and failing to apply temperature or pressure derating where required. Operators should follow the approved fusion procedure, pipe manufacturer’s instructions, and project specification.

Conclusion

A reliable HDPE pipe installation requires careful attention to material grade, pipe dimensions, SDR, pressure rating, joining procedures, and project standards. Selecting the correct PE100 or PE100-RC pipe for municipal water, gas, mining, or industrial applications helps support long-term pipeline performance and system safety.

Working with an experienced supplier that can provide HDPE pipes, compatible fittings, welding equipment, technical documents, and project support can also simplify procurement and logistics. EPC contractors should evaluate product quality, dimensional compatibility, production capability, testing records, certifications, delivery schedules, and after-sales service before selecting a supplier.
