What Are HDPE Coupling Fittings?

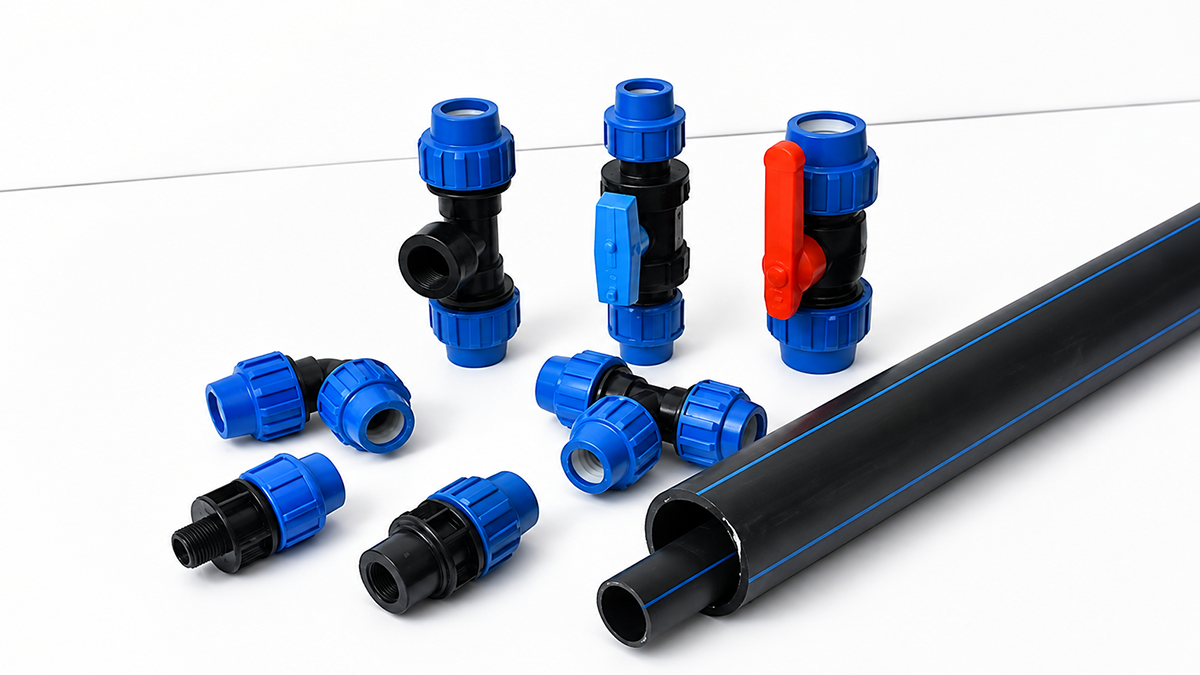

High-Density Polyethylene (HDPE) coupling fittings function as specialized mechanical or thermofusion connectors. They link lengths of HDPE pipe together, forming a seamless, leak-proof pipeline. The magic usually happens through heat fusion—either butt or electrofusion—which literally melts the polymer chains right at the joint interfaces. Once everything cools down, you get a single, monolithic piece. Surprisingly, this new joint often boasts greater structural strength than the parent pipe itself. While thermofusion is the heavy hitter for industrial jobs, mechanical compression fittings step in nicely for smaller pipe diameters or temporary installations.

When you’re dealing with massive infrastructure, grasping the technical differences between electrofusion and butt fusion is crucial. Both approaches ultimately deliver a flawless thermoplastic weld. However, they rely on completely different gear, heat delivery mechanisms, and on-site procedures to get there.

Why HDPE Coupling Fittings Matter for Modern Piping Projects

We’re seeing a massive shift away from legacy materials like PVC and ductile iron, largely because fusion-welded HDPE joints simply perform better. Older piping networks depend heavily on bell-and-spigot joints or mechanical gaskets. Naturally, these components degrade over time, causing massive systemic leaks and inefficiencies. Engineered HDPE couplings eliminate these built-in weak points.

• Leak-Tight Integrity: Thermofusion wipes out the 10-20% structural water loss that plagues older mechanical and gasketed setups. Because the fused connection becomes a continuous run of plastic, the usual points of failure vanish.
• Exceptional Service Life: Keep temperatures and operating pressures within normal ranges, and a properly fused HDPE joint will easily last 50 to 100 years. That kind of longevity radically cuts down on replacement cycles.
• Corrosion and Chemical Resistance: Say goodbye to galvanic corrosion and tuberculation. Fused HDPE joints shrug off highly alkaline or acidic soils, biological growth, and harsh organic solvents.
• Lower Lifecycle Cost (TCO): Yes, the initial fusion gear and setup will cost more upfront compared to solvent-welded PVC. Yet, the Total Cost of Ownership drops significantly. You’re looking at decades of sustained flow rates, zero joint maintenance, and an end to costly repair excavations.

Main Types of HDPE Coupling Fittings

Picking the right coupling dictates your machinery needs, how you prepare the site, and how well the joint ultimately performs. The industry generally leans on three main connection strategies. Each one is tailored for specific pipe diameters and working environments.

Butt Fusion Coupling Fittings: Working Principle and Installation

Butt fusion relies on a thermomechanical reaction. Crews heat both the coupling fitting and the pipe ends to a molten state using a PTFE-coated plate. Next, they press the ends together under strictly monitored hydraulic pressure. This action forces the melted polymer chains to mix and bind, eventually cooling into a uniform, solid joint.

Critical Butt Fusion Parameters

Step-by-Step Installation Flow

1. Preparation and Alignment: Clear away any dirt from the fitting and pipe ends. Lock them into the clamps of the hydraulic butt fusion machine to guarantee flawless axial alignment.

2. Facing: Drop the mechanical facer between the two ends. Plane the surfaces until you see continuous polyethylene ribbons shaving off both sides. This step guarantees the faces are clean and perfectly parallel.

3. Heating: Bring in the heater plate. Push the pipe and fitting against the plate using initial pressure to establish full contact, then ease off to drag pressure while the heat soaks in.

4. Fusion: Once you see the correct melt bead size, pull the heater plate out swiftly—staying within the maximum allowable changeover window. Immediately push the molten ends together at the required interfacial fusion pressure.

5. Cooling and Inspection: Keep the joint clamped under hydraulic pressure until the calculated cooling time elapses. A proper final inspection should reveal a double bead that rolls over to the surface, looks uniformly rounded, and maintains a consistent size all the way around.

Electrofusion Coupling Fittings: Working Principle and Installation

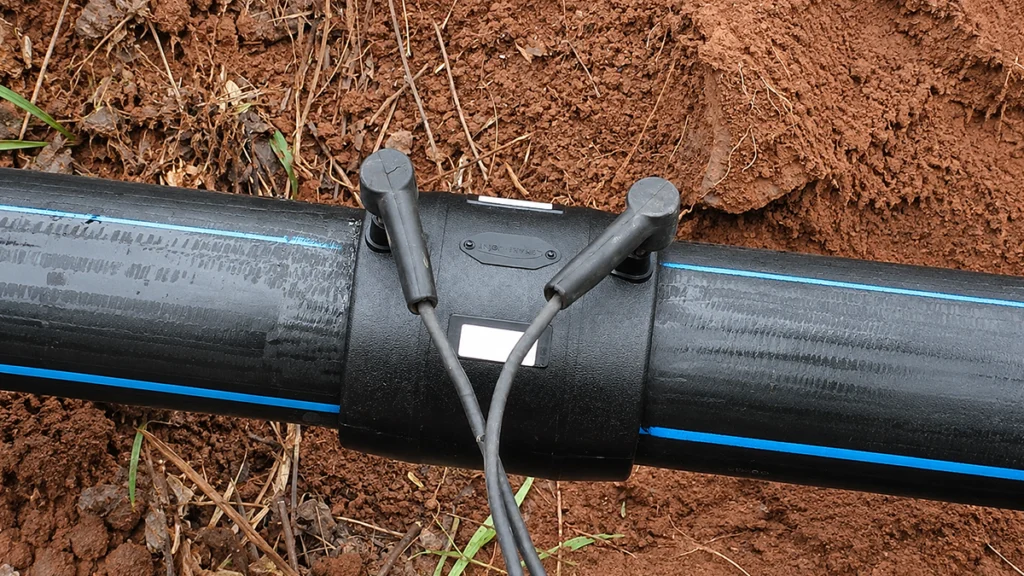

Electrofusion takes a different route, relying on specialized couplings outfitted with embedded copper electrical resistance coils. An electrofusion processor sends a specific voltage through these coils, generating precise thermal energy. This melts the outer layer of the pipe and the inner face of the HDPE pipe fittings. As the polymer heats up and expands, it auto-pressurizes against the cold zones of the fitting to forge an incredibly tough, monolithic weld.

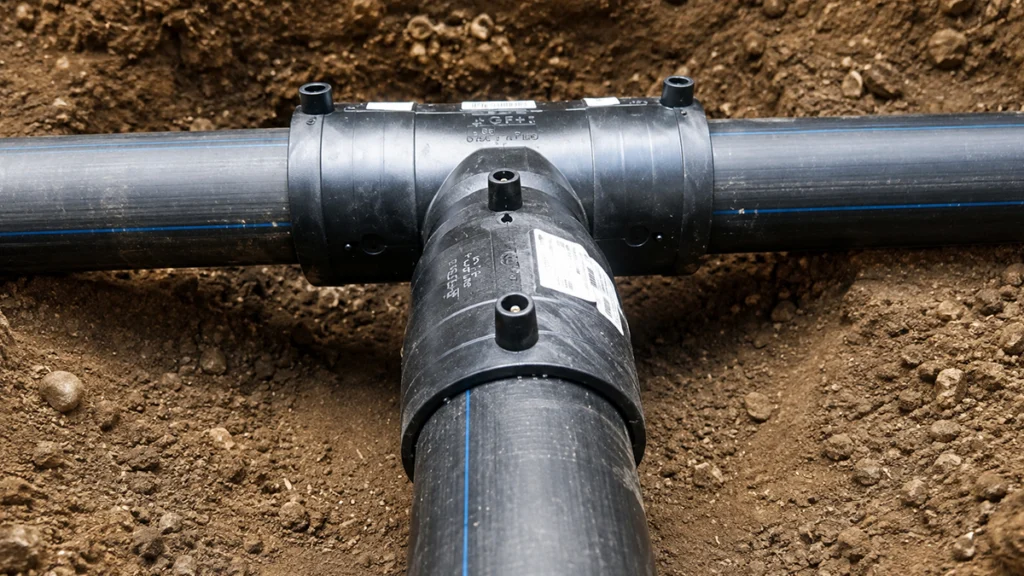

When you’re dealing with live pipeline tie-ins, restricted spaces, or joining pipes with different Standard Dimension Ratios (SDR), electrofusion easily outshines butt fusion. Most standard EF processors push out 39.5V to 40V, hooking up via universal 4.0 mm or 4.7 mm terminal pins. Fusion times vary wildly depending on the pipe diameter. A DN450 coupling, for example, needs roughly 1,380 seconds to fuse, whereas a massive DN630 takes about 1,620 seconds.

Electrofusion Installation Checklist

1. Square Cut and Clean: Slice the pipe ends so they are perfectly square. Clear out any dirt or debris from the insertion zone.

2. Mechanical Peeling (Critical): You must mechanically peel or scrape the pipe ends down to a minimum depth of 0.007 inches. This strips away the natural oxidized layer on the polyethylene. Skip this, and you’ll block the molecular fusion process entirely.

3. Solvent Cleaning: Wipe down the scraped pipe and the interior of the EF coupling with acetone or 90%+ isopropyl alcohol. Never use water. Avoid standard industrial wipes, too, as they often contain lanolin.

4. Marking and Assembly: Use a permanent marker to indicate the exact stab depth on the pipe. Push the pipe into the fitting right up to that mark, then lock the whole assembly into an alignment clamp so nothing shifts during the melt.

5. Barcode Scanning: Attach the processor leads to the fitting’s terminal pins. Scan the barcode on the coupling; the machine will automatically pull the precise voltage, cooling time, and fusion duration.

6. Fusion and Cooling: Start the cycle. Do not touch the alignment clamps until the barcode-specified cooling time is completely finished. Removing them early ruins the integrity of the cooling polymer matrix.

Butt Fusion vs Electrofusion Couplings: Side-by-Side Comparison

Choosing the right HDPE coupling means aligning your connection strategy with the realities of your job site, the pipe diameters in play, and your budget for installation gear.

The smartest project executions often blend both methods. Crews use butt fusion for those long, straight transmission runs to keep material costs down. Meanwhile, they save electrofusion for the tricky stuff—repairs, complex tie-ins, and tight spaces where dragging in heavy hydraulic machinery just isn’t physically possible.

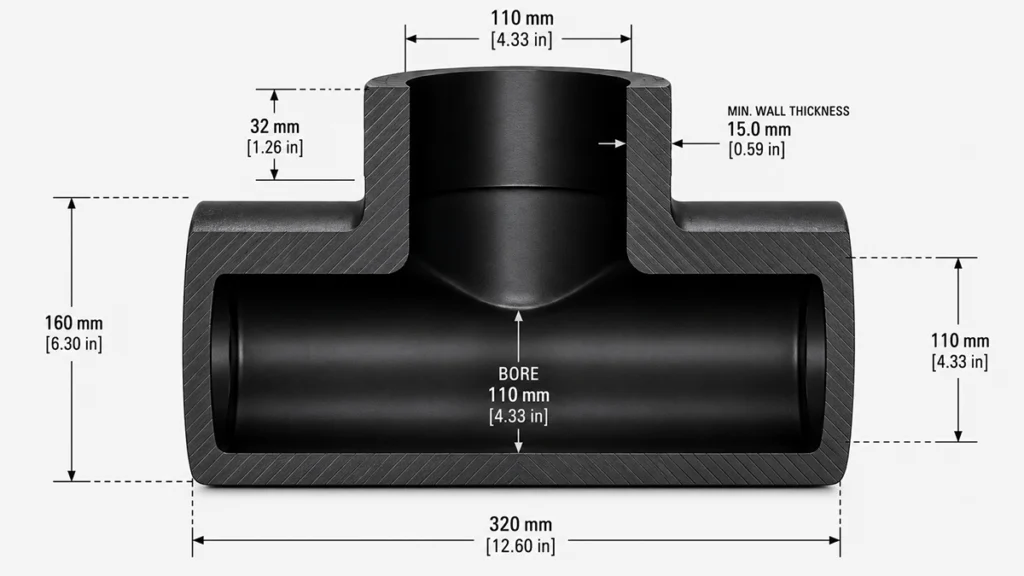

Technical Specifications and International Standards

Buying industrial-grade HDPE couplings means demanding strict compliance with international material and dimensional standards. Top-tier fittings are molded from high-performance polyethylene resins. You’ll mostly see PE100 (which boasts a Minimum Required Strength of 10.0 MPa or 1450 PSI) or PE4710 (featuring a Hydrostatic Design Basis of 1600 PSI at 23°C).

Crucially, the fitting’s pressure rating (PN) has to match—or beat—the rating of the pipeline itself. This rating hinges on the Standard Dimension Ratio (SDR), a simple calculation comparing the pipe’s outside diameter to its wall thickness.

Standard Dimension Ratio (SDR) and Pressure Ratings (PE100)

Global Manufacturing and Testing Standards

• ISO 4427: The primary global standard for plastic piping systems handling water supply.
• EN 12201: The European benchmark outlining the characteristics of PE water piping systems.
• AWWA C906: The American Water Works Association’s standard governing large-diameter municipal water mains.
• ASTM D2513: The go-to specification for polyethylene gas pressure tubing, pipe, and fittings.
• GB/T 13663-2018: The Chinese national framework for PE water supply networks.

If you are sourcing fittings for potable water, structural standards aren’t enough. Engineers need to verify that components carry specific health and safety approvals like WRAS (UK), NSF/ANSI 61 (US), or DVGW (Germany). Passing ISO 4427 proves mechanical strength, but it certainly doesn’t guarantee the plastic is safe for drinking water.

Typical Application Scenarios of HDPE Coupling Fittings

Thanks to their incredible versatility, HDPE coupling fittings pop up across wildly different industrial sectors. The tough fusion welds, combined with the plastic’s natural chemical resistance, solve unique operational headaches in almost any environment.

Municipal Water Mains

High-pressure potable water lines lean heavily on PE100 SDR11 (PN16) fittings. Take a DN315 municipal main, for instance. Joining it with butt fusion creates a totally leak-free network that easily absorbs soil settlement and dynamic pressure surges without ever separating at the joints.

Gas Distribution Networks

Low-pressure natural gas systems generally rely on black or yellow PE100 fittings that meet ASTM D2513 guidelines. Electrofusion absolutely dominates this space. Why? Because gas lines require zero-leak guarantees, and crews constantly have to perform live tie-ins while crammed into congested urban utility trenches.

Industrial and Mining Operations

Aggressive wastewater treatment plants, chemical processing facilities, and slurry lines demand extreme resistance to abrasion and chemicals. Massive butt fusion couplings (think DN630 SDR17) routinely transport highly corrosive effluents and abrasive mine tailings. In these brutal conditions, HDPE outlasts traditional steel by decades.

How to Choose the Right HDPE Coupling Fittings Supplier

Vetting a manufacturer requires digging into their quality control, production capacity, and raw material sourcing. As a B2B buyer, you need to know if a supplier can maintain strict dimensional accuracy across massive production runs.

Consider a major player like JINQUAN Plastic Industry Co., Ltd. They run a 200-acre facility pushing out over 100,000 tons of product every year. That kind of footprint handles high-volume molded fittings right alongside custom-fabricated, large-diameter pieces. Generally, standard runs take about 7 to 15 days to turn around. If you need custom specifications or full international shipping containers, expect a 25 to 35-day lead time. Minimum Order Quantities (MOQs) make practical sense based on size: smaller pipes (DN20-DN63) usually demand around 1,000+ meters, while you can secure large diameters (DN315+) for as little as 100 meters.

Supplier Evaluation Checklist

1. Resin Sourcing: Make sure the factory uses 100% virgin bimodal PE100 resin, entirely free of recycled impurities.

2. Oxidation Induction Time (OIT): Check the batch tests. OIT should exceed 20 minutes at 200°C to guarantee long-term thermal stability.

3. Dimensional Consistency: Ensure the Standard Dimension Ratio (SDR) holds tight to ISO tolerances across multiple production batches.

4. Electrofusion Compatibility: Verify that all EF fittings have universal ISO-compliant barcodes and standard 4.0/4.7mm pins.

5. Testing Infrastructure: The facility must perform its own in-house tensile strength and hydrostatic pressure tests on fused joints.

6. International Certification: Ask to see up-to-date paperwork for CE, ISO 14001, ISO 9001, and whatever water safety approvals apply to your region (NSF, WRAS, etc.).

Common Mistakes and Hidden Risks to Avoid

Even top-tier HDPE couplings will fail if your field crews ignore technical specifications. The vast majority of joint blowouts trace directly back to human error during the fusion and prep phases.

• Improper Peeling (EF): Skipping the mechanical scrape is the fastest way to ruin an electrofusion joint. *The Fix: Always use a rotary peeler to shave off at least 0.007 inches of the pipe’s oxidized surface.*
• Surface Contamination: Wiping a scraped pipe with dirty rags or bare hands leaves oils and dirt in the weld zone. *The Fix: Only clean the fusion area with 90%+ isopropyl alcohol and lint-free wipes.*
• Misalignment and Stab Depth Errors: If the pipe isn’t pushed in far enough, you get a “short stab fault.” This exposes the electrical coils and causes a short circuit. *The Fix: Mark the exact stab depth with a sharpie beforehand, and lock everything down with alignment clamps.*
• Premature Clamp Removal: Taking off the alignment clamps or dropping the hydraulic pressure before the plastic fully crystallizes will ruin the joint’s strength. *The Fix: Do not touch those clamps until the calculated or barcode-specified cooling time is completely up.*

Final Recommendation: Selecting the Right Connection Solution

Nailing the perfect HDPE connection strategy means looking objectively at your project variables. You have to weigh long-term operational efficiency against upfront equipment costs.

• Go with Butt Fusion when: You have the budget to mobilize heavy hydraulic gear, you’re working with large diameters (over DN90), and you’re laying long, straight runs in open trenches.
• Go with Electrofusion when: You’re dealing with tight spaces, vertical shafts, pipeline repairs, or connecting pipes with different SDR ratings where bulky equipment just won’t fit.
• Go with Mechanical Compression when: You’re setting up temporary water lines, working with small bore pipes (under DN63), or operating out in the middle of nowhere without a power supply.

Frequently Asked Questions

Q1: What is the difference between butt fusion and electrofusion HDPE couplings?

Butt fusion uses a heated PTFE plate to melt the pipe and fitting ends, which are then mechanically forced together. Electrofusion, on the other hand, relies on a coupling with built-in copper coils. Pushing an electrical current through those coils generates internal heat, melting the pieces together from the inside out.

Q2: Can HDPE coupling fittings be used for both water and gas pipelines?

Absolutely. HDPE is the gold standard for both. Just keep in mind that gas networks usually demand yellow or black PE100 resin and strict adherence to specific standards like ASTM D2513. Water systems follow ISO 4427 and need dedicated potable water health certifications.

Q3: What pressure rating do HDPE couplings typically support?

That depends entirely on the material grade and the Standard Dimension Ratio (SDR). A standard PE100 SDR11 fitting handles PN16 (232 psi or 16 bar). Step down to an SDR17 fitting, and you’re looking at PN10 (145 psi or 10 bar). Always ensure your fitting’s rating meets or exceeds the pipeline’s maximum operating pressure.

Q4: How long does an HDPE fusion joint last?

When crews follow the exact temperature, pressure, and cooling specs, the joint becomes a solid, monolithic block. Under normal conditions, you can expect a proven, maintenance-free service life of 50 to 100 years.

Q5: Is electrofusion more reliable than butt fusion for small-diameter pipes?

For anything under DN90, electrofusion is usually the smarter play. It’s highly dependable and much less of a hassle than wrangling small-scale hydraulic butt fusion machines. Plus, it prevents the internal bead buildup that can choke off flow rates in tiny pipes.

Q6: What certifications should HDPE coupling fittings have for potable water use?

Drinking water fittings require third-party health and safety testing to prove they won’t leach chemicals. Look for DVGW in Germany, WRAS in the UK, and NSF/ANSI 61 in the United States.

Q7: What is the typical MOQ and lead time when ordering HDPE couplings from a manufacturer?

Factory direct MOQs usually scale with the physical size of the pipe. Small diameters (DN20-DN63) require orders around 1,000+ meters, while massive pipes (DN315+) might only require 100 meters. Standard runs take 7 to 15 days. If you’re ordering custom batches or massive international containers, expect a 25 to 35-day wait.

Q8: Can HDPE couplings connect pipes with different SDR ratings?

Yes, but you have to use specialized mechanical fittings or electrofusion. You cannot use butt fusion to join pipes with different SDR ratings (wall thicknesses). The mismatched surface areas won’t heat or bond evenly, which completely ruins the structural integrity of the weld.

Conclusion

Guaranteeing a 100-year lifespan for your pipeline infrastructure comes down to specifying the right HDPE coupling fittings and installing them flawlessly. Whether you leverage the high-volume, open-trench efficiency of butt fusion or the surgical, tight-space precision of electrofusion, the goal is identical: a perfect monolithic weld. Success in procurement and execution requires zero compromises on international standards like ISO 4427 and PE100 material grades. By rigorously vetting supplier manufacturing standards, enforcing strict field prep rules (especially proper cooling times and mechanical peeling), and matching your connection strategy to the realities of the job site, engineering teams can completely eradicate the joint failures that plague legacy piping networks.
