HDPE Pipe Manufacturer in China
Factory-direct PE100 HDPE pipe supplier for water supply, drainage, gas, mining, irrigation and infrastructure projects.
JQ PIPE delivers high-quality HDPE pipes with custom sizes, strict quality control and professional export support to clients worldwide. Your trusted partner for long-term projects.
Factory-Direct HDPE Pipe Supplier for Global Projects
JQ PIPE is a professional HDPE pipe manufacturer in China, serving contractors, distributors and infrastructure buyers worldwide. With advanced production lines, strict quality control and rich export experience, we provide reliable HDPE piping solutions for various industries and applications.
Why Choose JQ PIPE
Factory-Direct Supply
Competitive price and stable supply capacity.
Custom Specifications
Sizes, SDR, length and colors can be customized.
PE100 Material
Premium PE100 raw material for long service life.
Large Diameter Capability
Manufacture up to DN3000 with advanced equipment.
Quality Inspection
Strict QC system ensures every pipe meets standards.
Export Support
Professional export team and global logistics support.
View JQ HDPE Pipe Products
HDPE Pipes and Fittings Manufacturer, Supplier in China
HDPE Pipe Specifications
| Nominal Wall Thickness (mm) | ||||||||
|---|---|---|---|---|---|---|---|---|
| Standard Dimension Ratio | SDR 9 | SDR 11 | SDR 13.6 | SDR 17 | SDR 21 | SDR 26 | SDR 33 | SDR 41 |
| PE 80 Nominal Pressure | 1.6MPa (PN16) | 1.25MPa (PN12.5) | 1.0MPa (PN10) | 0.8MPa (PN8) | 0.6MPa (PN6) | 0.5MPa (PN5) | 0.4MPa (PN4) | 0.32MPa (PN3.2) |
| PE 100 Nominal Pressure | 2.0MPa (PN20) | 1.6MPa (PN16) | 1.25MPa (PN12.5) | 1.0MPa (PN10) | 0.8MPa (PN8) | 0.6MPa (PN6) | 0.5MPa (PN5) | 0.4MPa (PN4) |
| Nominal External Diameter | ||||||||
| 16 | 2.3 | |||||||
| 20 | 2.3 | 2.3 | ||||||
| 25 | 3.0 | 2.3 | 2.3 | |||||
| 32 | 3.6 | 3.0 | 2.4 | 2.3 | ||||
| 40 | 4.5 | 3.7 | 3.0 | 2.4 | 2.3 | |||
| 50 | 5.6 | 4.6 | 3.7 | 3.0 | 2.4 | 2.3 | ||
| 63 | 7.1 | 5.8 | 4.7 | 3.8 | 3.0 | 2.5 | ||
| 75 | 8.4 | 6.8 | 5.6 | 4.5 | 3.6 | 2.9 | ||
| 90 | 10.1 | 8.2 | 6.7 | 5.4 | 4.3 | 3.5 | ||
| 110 | 12.3 | 10 | 8.1 | 6.6 | 5.3 | 4.2 | ||
| 125 | 14 | 11.4 | 9.2 | 7.4 | 6 | 4.8 | ||
| 140 | 15.7 | 12.7 | 10.3 | 8.3 | 6.7 | 5.4 | ||
| 160 | 17.9 | 14.6 | 11.8 | 9.5 | 7.7 | 6.2 | ||
| 180 | 20.1 | 16.4 | 13.3 | 10.7 | 8.6 | 6.9 | ||
| 200 | 22.4 | 18.2 | 14.7 | 11.9 | 9.6 | 7.7 | ||
| 225 | 25.2 | 20.5 | 16.6 | 13.4 | 10.8 | 8.6 | ||
| 250 | 27.9 | 22.7 | 18.4 | 14.8 | 11.9 | 9.6 | ||
| 280 | 31.3 | 25.4 | 20.6 | 16.6 | 13.4 | 10.7 | ||
| 315 | 35.2 | 28.6 | 23.2 | 18.7 | 15.0 | 12.1 | 9.7 | 7.7 |
| 355 | 39.7 | 32.2 | 26.1 | 21.1 | 16.9 | 13.6 | 10.9 | 8.7 |
| 400 | 44.7 | 36.3 | 29.4 | 23.7 | 19.1 | 15.3 | 12.3 | 9.8 |
| 450 | 50.3 | 40.9 | 33.1 | 26.7 | 21.5 | 17.2 | 13.8 | 11 |
| 500 | 55.8 | 45.4 | 36.8 | 29.7 | 23.9 | 19.1 | 15.3 | 12.3 |
| 560 | 62.5 | 50.8 | 41.2 | 33.2 | 26.7 | 21.4 | 17.2 | 13.7 |
| 630 | 70.3 | 57.2 | 46.3 | 37.4 | 30.0 | 24.1 | 19.3 | 15.4 |
| 710 | 79.3 | 64.5 | 52.2 | 42.1 | 33.9 | 27.2 | 21.8 | 17.4 |
| 800 | 89.3 | 72.6 | 58.8 | 47.4 | 38.1 | 30.6 | 24.5 | 19.6 |
| 900 | 81.7 | 66.2 | 53.3 | 42.9 | 34.4 | 27.6 | 22 | |
| 1000 | 90.2 | 72.5 | 59.3 | 47.7 | 38.2 | 30.6 | 24.5 | |
| 1200 | 88.2 | 67.9 | 57.2 | 45.9 | 36.7 | 29.4 | ||
| 1400 | 102.9 | 82.4 | 66.7 | 53.3 | 42.9 | 34.3 | ||
| 1600 | 117.6 | 94.1 | 76.2 | 61.2 | 49 | 39.2 | ||
| 1800 | 105.9 | 85.7 | 69.1 | 54.5 | 43.8 | |||
| 2000 | 117.6 | 95.2 | 76.9 | 60.6 | 48.8 | |||
| 2250 | 107.2 | 86 | 70 | 55 | ||||
| 2500 | 119.1 | 96.5 | 77.7 | 61.2 | ||||
| Customized according to customer needs |
| Products Details Information | Company / Factory Strength | ||
|---|---|---|---|
| Product Name | High Density Polyethylene (HDPE) Pipe for drinking water | Production Capacity | 180*40ft containers/month |
| Brand | JINQUAN Pipeline (or OEM) | Sample | Free sample available |
| Dia. Ranges | DN20-2500mm (1/2 inch – 98 inch) | Delivery Time | 5–10 days, depending on the quantity |
| Pressure Class | From PN4 to PN32 for pipe, PN10 to PN32 for fitting | Test / Inspection | National standard laboratory, Pre-delivery inspection |
| Standards | ISO 4427, ASTM 3035, ASTM F714, EN 12201, AS/NZS 4130, DIN 8074, GOST 18599, DIPS, IPS | Certificates | ISO9001, OHSAS 18001, ISO14001, ISO45001, CE... |
| Raw Material | PE80, PE100, PE4710, PE3608, PE100RC... | Management | Effective 8S management system |
| Color | Black with blue stripes, Blue or other colors | Warranty | 60 years with normal use |
| Packing | 5.8m or 11.8m/length, 100–200m/roll for pipe. Cartons or bags for fitting (customizable) | Quality | QA & QC system, Ensure traceability of each process |

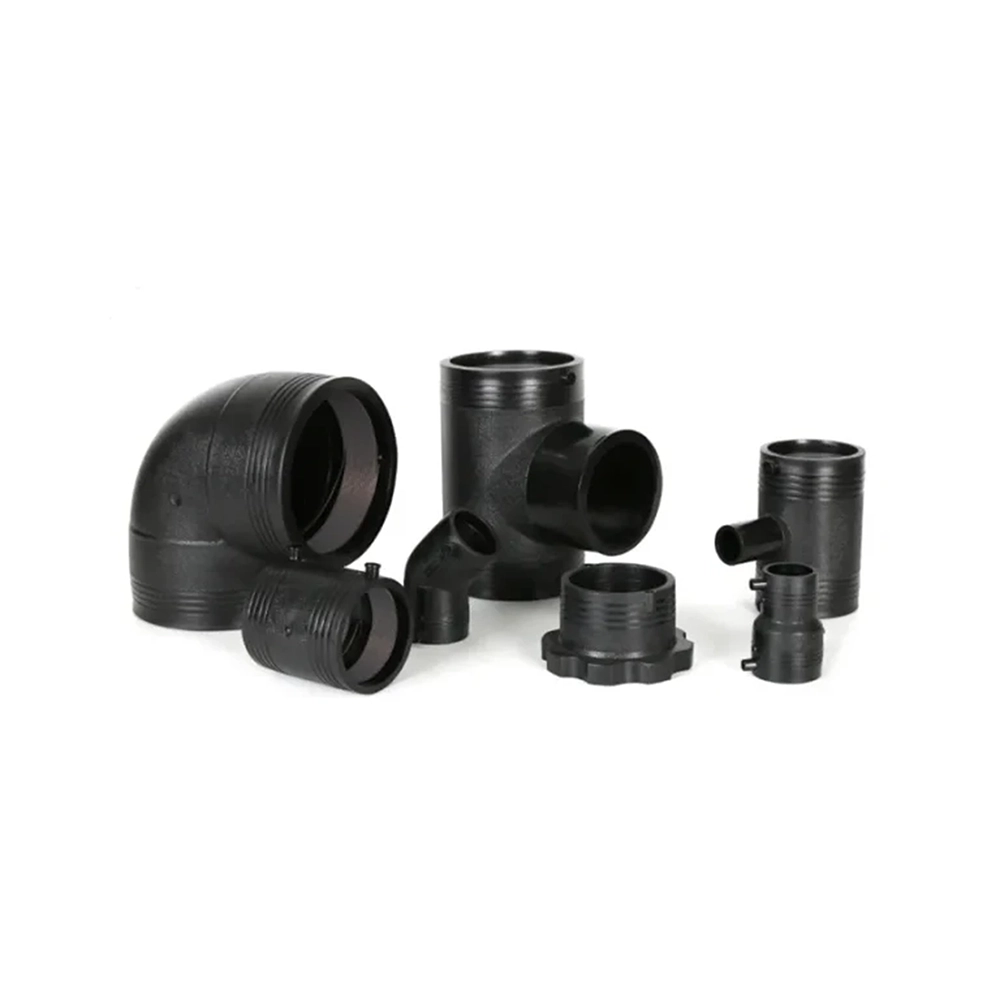

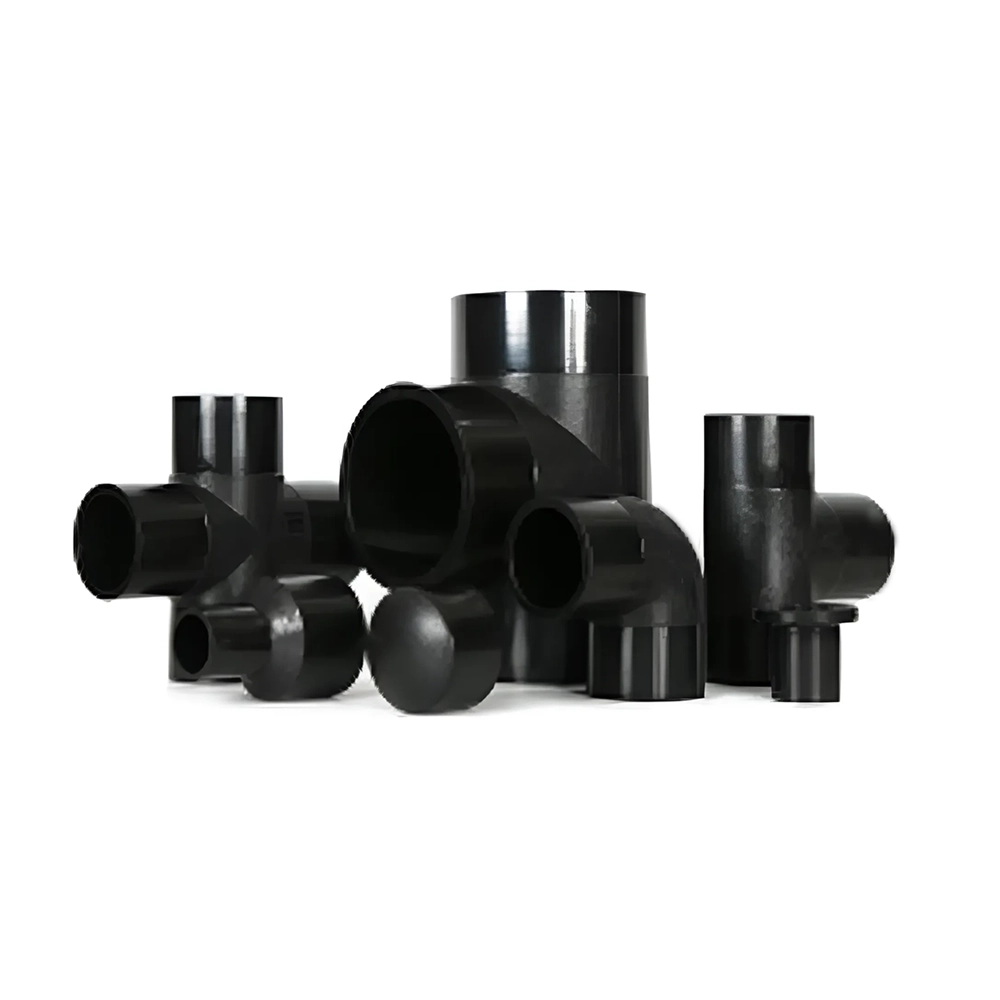

| Matching Products | HDPE Butt fusion welding fitting, Socket fusion, Electrofusion welding fitting, Compression fittings, Welding machines and tools, etc. | Service | Research, Design, Sales, Solution providing, Test, Manufacture, Aftersales service |
| Test Item | Indicator | Test Method |
|---|---|---|
| Melt Mass Flow Rate (g/10 min) | MFR change before and after processing ≤ 20% | GB/T 3682.1-2018 |
| Oxidation Induction Time | ≥ 20 min | GB/T 19466.6-2009 |
| Longitudinal Retraction Rate | ≤ 3% | GB/T 6671-2001 |
| Carbon Black Content | 2.0% ～ 2.5% | GB/T 13021-1991 |
| Carbon Black Dispersion | ≤ Grade 3 | GB/T 18251-2000 |
| Pigment Dispersion | — | — |
| Ash Content | ≤ 0.1% | GB/T 9345.1-2008 |
| Elongation At Break | ≥ 350% | GB/T 8004.3-2003 |
| Resistance to Slow Crack Growth en ≤ 5 mm (Cone Test) | < 10 mm / 24h | GB/T 19279-2003 |
| Resistance to Slow Crack Growth en ＞ 5 mm (Incision Test) | No damage, no leakage | GB/T 18476-2001 |
| Hydrostatic Pressure Strength 20℃, 100h | No damage, no leakage | GB/T 6111-2003 |
| Hydrostatic Pressure Strength 80℃, 165h | No damage, no leakage | GB/T 6111-2003 |
| Hydrostatic Pressure Strength 280℃, 1000h | No damage, no leakage | GB/T 6111-2003 |
| Note: The indicators refer to PE pipe material quality control standards. |

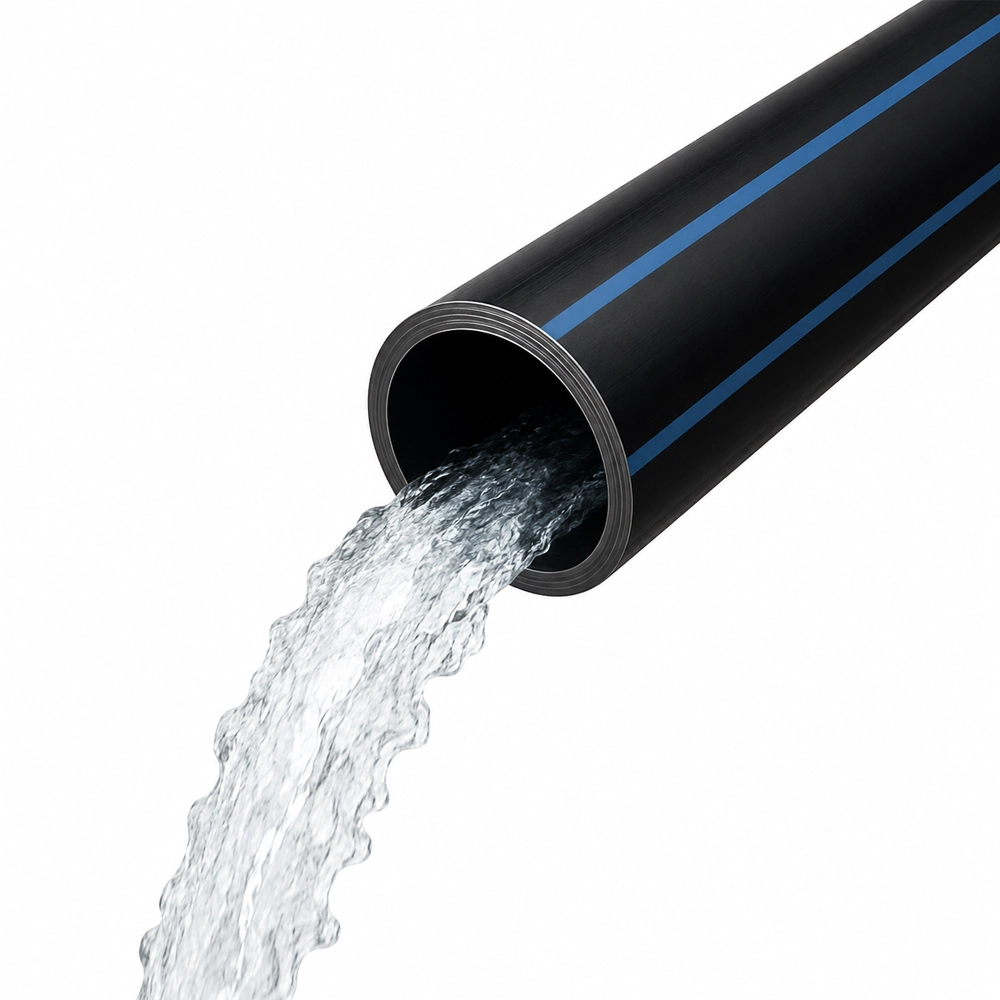

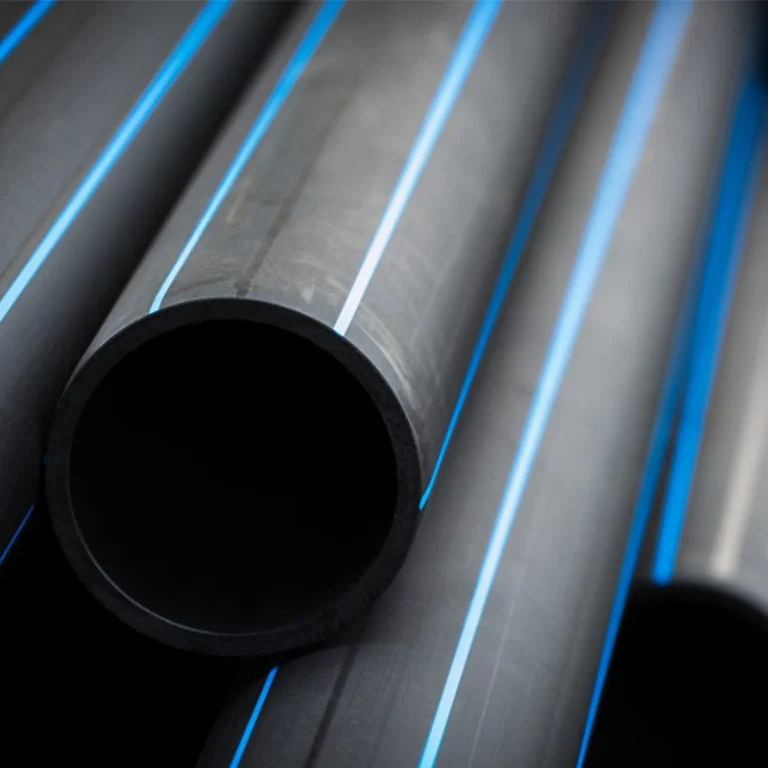

HDPE Pipe Features
- 1. HDPE pipe for drinking water have excellent flexibility and durability, with an expected service life of up to 60 years.
- 2. HDPE water pipe has excellent corrosion and chemical resistance and can resist rust, scaling, and chemical attack by disinfectants such as chlorine.
- 3. HDPE pipe for drinking water is non-toxic and safe, and will not leak harmful substances, making it an ideal choice for drinking water.
- 4. PE100 pipe for water supply are light, smooth, have low friction resistance, are easy to install and maintain, and are connected by butt fusion connecting.
HDPE Water Pipe Application
- 1. HDPE pipe for drinking water is used to transport drinking water from treatment plants to residential, commercial and industrial areas, as well as long distance water transportation in rural areas.
- 2. HDPE pipe for drinking water is used for domestic water supply connections, connecting city water lines to individual residences using safe, leak-free fittings.
- 3. Due to the non-toxic and inert material properties of HDPE water pipe, treated water can be safely transported.
- 4. HDPE water supply pipes are suitable for upgrading and updating urban infrastructure.
FAQs about JQ HDPE Pipe
1. Are you a HDPE pipe manufacturer or trading company?
JQ PIPE is a factory-direct HDPE pipe manufacturer in China, supporting bulk orders, custom specifications and export projects.
2. What sizes can JQ supply?
We can supply a wide range of HDPE pipe sizes, from small-diameter coils to large-diameter straight pipes(DN16mm-3000mm). Custom sizes can be discussed based on project requirements.

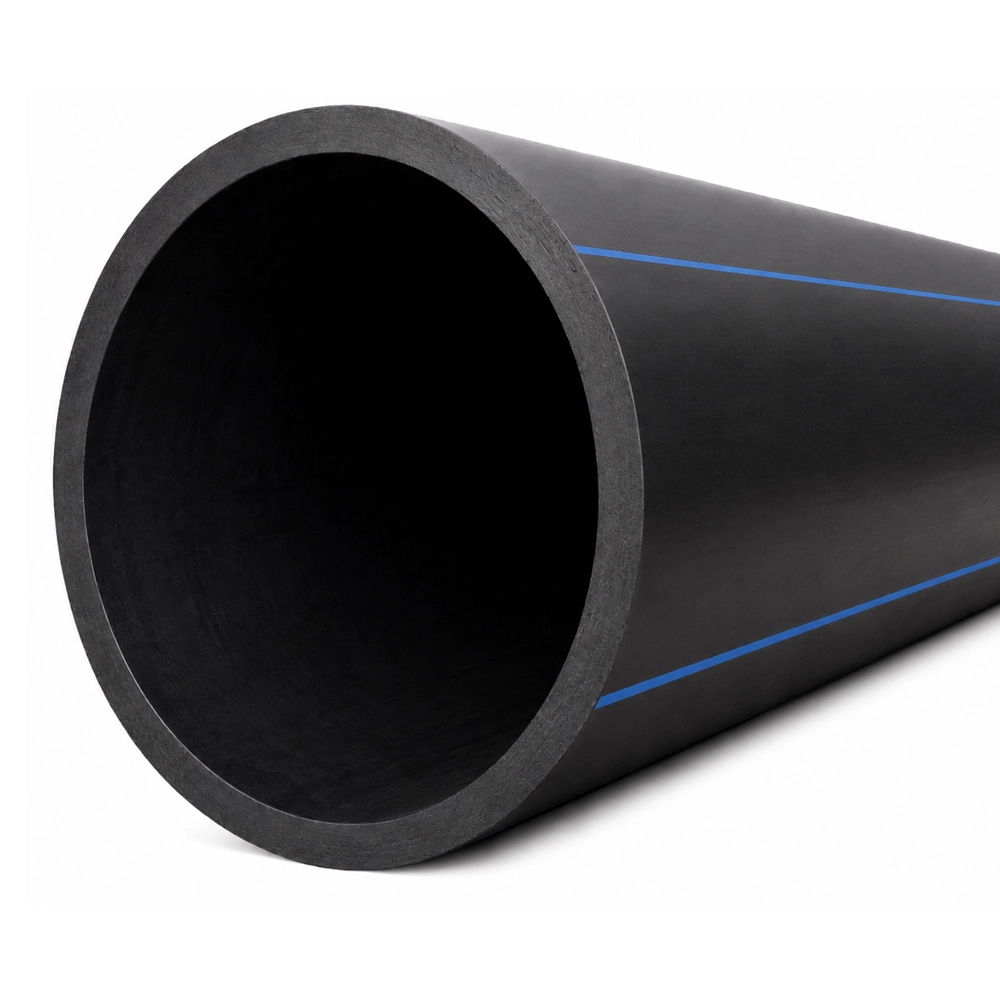

3. Can you supply large diameter HDPE pipes?
Yes. JQ PIPE supports large diameter HDPE pipe requirements for water transmission, drainage, mining, industrial and infrastructure projects. The maximum HDPE pipe size can reach DN3000 mm.
4. What material grades are available?
Common material options include PE100, PE80 and higher. PE100 is widely used for pressure pipelines and long-term engineering projects.
5. Do you support export orders?
Yes. JQ support international bulk orders, export packing, container loading, shipping documents and project-based quotation service.
6. How do I get an accurate quotation?
Please provide PE100 pipe diameter, SDR or PN rating, material grade, quantity, application, destination port and any project drawings or specifications. If you are unsure how to choose, please feel free to contact us; our team of experts will provide the optimal solution for your project.
7. What is the delivery time?
Delivery time depends on HDPE pipe size, quantity, specification and production schedule. For regular specifications, we can provide a delivery plan after confirming your order details.
8. What payment terms do you accept?
Payment terms can be discussed based on order value, destination country and cooperation model. Contact our sales team for project-based terms.
We specialize in the production
Wide Product Range to Meet All Needs
- 1. High-density PE Pipes (Water Supply, Drainage, Cable Protection)
- 2. PPR Pipes (Hot & Cold Water Systems)
- 3. DWC Pipes (Double Wall Corrugated Pipes for Underground Cable & Drainage)
- 4. Krah Pipes

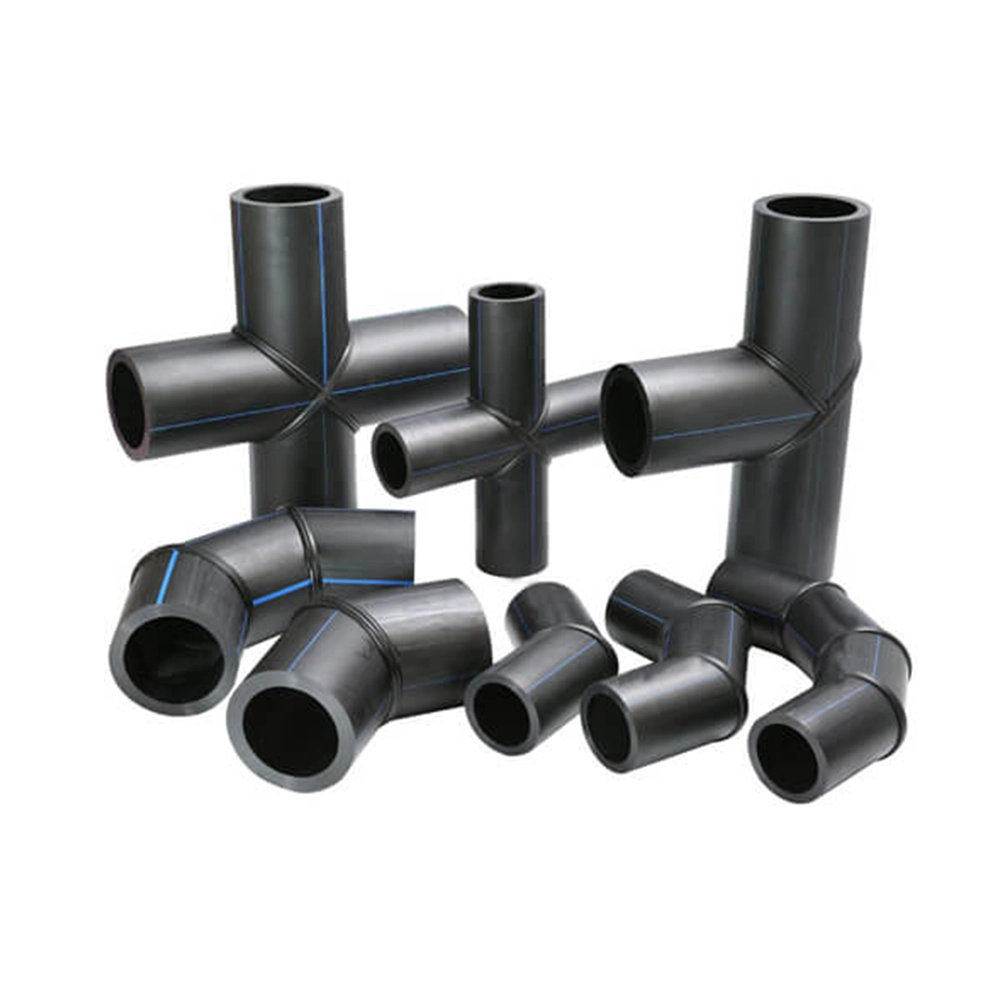

- 5. HDPE Fittings & PPR Fittings

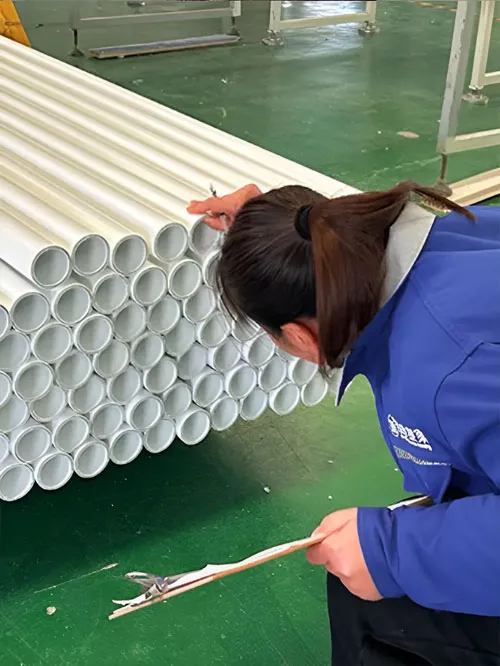

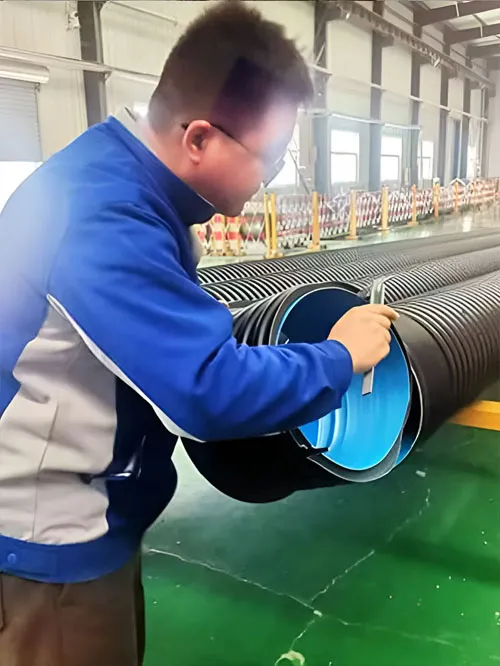

Quality inspection process
- Environmentally friendly raw materials are recyclable
- Material chemical composition analysis and physical property test
- Each process must be inspected and qualified before continuing
- Thickness and weight test of each HDPE pipe and fittings
- Each HDPE pipe is not put into storage until after final inspection.
- Every shipment is checked before delivery
OUR FACTORY
We have strict quality control and a professional custom design team, providing HDPE Pipes, PPR Pipes, MPP Pipes, DWC Pipes, HDPE Pipes Fittings & PPR Fittings and other products for export and wholesale
Factory Area
0
m²
Production Line
0
+
Output Value
0
T
Exporting Country
0
+
Why choose us?
You must want to know what a surprise the factory direct sales price is.
Advanced Manufacturing & Large Production Capacity
- 1.Over 100,000 m² modern production base
- 2.18+ extrusion lines and fully automated equipment
- 3.Monthly capacity of 200+ containers
- 4.Custom OEM/ODM services available
Eco-Friendly & Sustainable Manufacturing
- 1.Use of non-toxic, recyclable materials
- 2.Low energy consumption equipment
- 3.Compliance with RoHS, REACH, and lead-free requirements
Global Export Experience & Project Support
- 1.Exported to 50+ countries across Asia, Africa, Europe, South America, and the Middle East
- 2.Rich experience with government tenders, EPC projects, and international distributors
- 3.Support with technical datasheets, certifications, and shipping logistics
